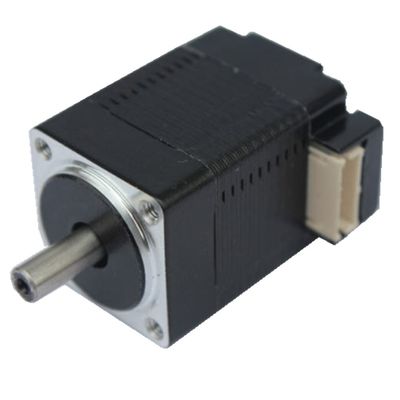

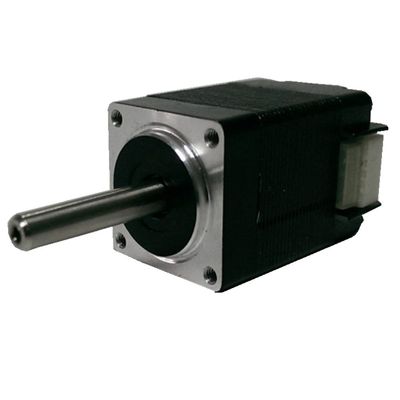

1.8 Degree Two Phase High Torque 20mm Stepper Motor

1.8 Degree Two Phase High Torque 20mm Stepper Motor
1.8 Degree Two Phase High Torque 20mm Stepper Motor 1.8 Degree Two Phase High Torque 20mm Stepper Motor 1.8 Degree Two Phase High Torque 20mm Stepper Motor 1.8 Degree Two Phase High Torque 20mm Stepper Motor 1.8 Degree Two Phase High Torque 20mm Stepper Motor

Large Image :  1.8 Degree Two Phase High Torque 20mm Stepper Motor

Product Details:
Place of Origin: china
Brand Name: OWO
Certification: CE, RoHs,
Model Number: 20SH33, 20SH42
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiable
Packaging Details: suite for export
Delivery Time: as confirmed
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/Month

1.8 Degree Two Phase High Torque 20mm Stepper Motor

Description
Step Angle: 1.8 Degree Step Angle Accuracy: ±5%(full Step, No Load)
Resistance Accuracy: ±10% Inductance Accuracy: ±20%
Temperature Rise: 80℃ Max(rated Current, 2 Phase) Ambient Temperature: -20℃~+50℃
Insulation Resistance: 100MΩMin.500VDC Dielectric Strength: 500VAC 1minute
High Light:

20mm stepper motor

,

1.8 degree stepper motors

,

20mm Hybrid Stepper Motor

1.8 degree size 20mm 2-phase high torque hybrid stepper motor is used for optical instrument, scanning equipment

1.8 Degree Two Phase High Torque 20mm Stepper Motor 0



●General Specification:

Item Specifications
Step Angle 1.8°



Step Angle Accuracy

±5%
Resistance Accuracy ±10%
Inductance Accuracy ±20%
Temperature Rise 80℃ Max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100MΩMin.500VDC
Dielectric Strength 500V AC 1minute



●Electrical Specifications:

Model No. Rated Voltage (V)

Current/

Phase

(A)

Resistance/

Phase

(Ω)

Inductance

/Phase

(mH)

Holding Torque

(N.m)

Rotor Inertia

(g.cm2)

Motor Length

(mm)

Lead Wire

(No.)

Weight

(g)

20SH33-0604A 3.96 0.6 6.5 1.7 0.0175 2 33 4 60
20SH42-0804A 4.32 0.8 5.4 1.5 0.03 3.6 42 4 80
*We can manufacture products according to customer’s requirements



  • Mechanical Dimensions:

1.8 Degree Two Phase High Torque 20mm Stepper Motor 1







Speed VS. Torque Characteristics:

1.8 Degree Two Phase High Torque 20mm Stepper Motor 2

Connection:

1.8 Degree Two Phase High Torque 20mm Stepper Motor 3







Application:

Scientific instrument industry: Optical instrument

Medical industry: Scanning equipment

Communication equipment industry: Mobile Satellite TV











Contact Details
Changzhou Bextreme Shell Motor Technology Co.,Ltd

Contact Person: Mr. Amigo Deng

Tel: +86-18994777701

Fax: 86-519-83606689

Send your inquiry directly to us (0 / 3000)
