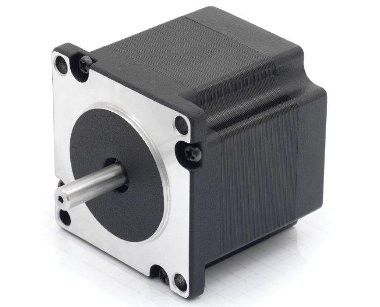

0.9 Degree Six Wire Hybrid Stepper Motor Torque Control For Electronics

0.9 Degree Six Wire Hybrid Stepper Motor Torque Control For Electronics

  • 0.9 Degree Six Wire Hybrid Stepper Motor Torque Control For Electronics
0.9 Degree Six Wire Hybrid Stepper Motor Torque Control For Electronics
Product Details:
Place of Origin: CHINA
Brand Name: OWO
Certification: CCC. ROHS.CE
Model Number: 57HM4110A6,57HM5106A4,57HM7615A4,57HM7642A4....
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: Negotiable
Packaging Details: SUITE FOR EXPORT
Delivery Time: AS CONFIRMED
Payment Terms: Western Union, T/T,
Supply Ability: 10000PCS
Contact Now
Detailed Product Description
SIZE: 57MM Length: 41mm,45mm,51mm,56mm,64mm,76mm,
Lead Wire: 4 Or 6 Step Angle: 0.9 Degree
Weight: 470g,520g,680g,850g,1050g Holding Torque: 0.24-1.5N.cm
High Light:

six wire stepper motors

,

stepper motor torque control

,

stepper torque controller

0.9Degree size 57mm 2-phase high torque Hybrid stepper motor

●General Specification:

Item Specifications
Step Angle 0.9°



Step Angle Accuracy

±5%
Resistance Accuracy ±10%
Inductance Accuracy ±20%



Temperature Rise

80℃ Max



Ambient Temperature

-20℃~+50℃
Insulation Resistance 100MΩMin.500VDC
Dielectric Strength 500V AC 1minute



●Electrical Specifications:

Model No.

Step angle

(°)

Current

(A)

Resistance

(Ω)

Inductance

/Phase

(mH)

Holding Torque

(N.cm)

Detent Torque

(N.cm)

Rotor Inertia

(g.cm2)

Motor Length

(mm)

Lead Wire

(No.)

Weight

(g)

57HM4110A6 0.9 1.0 5.2 6.2 0.24 2.5 150 41 6 470
57HM4525A4 0.9 2.5 1.0 3.0 0.62 2.8 190 45 4 520
57HM5106A4 0.9 0.62 13 34 0.7 3 230 51 4 590
57HM5125A4 0.9 2.5 1.2 3.8 0.7 3 230 51 4 590
57HM5625A4 0.9 2.5 1.3 5.2 1.0 3.5 280 56 4 680
57HM5630A4 0.9 3.0 0.8 2.8 1.0 3.5 280 56 4 680
57HM6425A4 0.9 2.5 1.5 5.8 1.1 5 380 64 4 850
57HM6430A4 0.9 3.0 0.8 3 1.1 5 380 64 4 850
57HM7615A6 0.9 1.5 4.5 10 1.25 6 440 76 6 1050
57HM7625A4 0.9 2.5 1.8 8.2 1.5 6 440 76 4 1050
57HM7630A4 0.9 3.0 1.0 4.3 1.5 6 440 76 4 1050
57HM7642A4 0.9 4.2 0.65 2.2 1.5 6 440 76 4 1050



*We can manufacture products according to customer’s requirements





  • Mechanical Dimensions: ● Wiring Diagram:
  • 0.9 Degree Six Wire Hybrid Stepper Motor Torque Control For Electronics 0
