| Place of Origin: | china |
| Brand Name: | OWO |
| Certification: | CE, Rohs |
| Model Number: | 35BYJ |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | suite for export |
| Delivery Time: | as confirmed |
| Payment Terms: | L/C, T/T, Western Union,PAYPAL |
| Supply Ability: | 10000PCS/Month |
| Motor Type: | PM Stepping Motor | Step Angle: | 7.5°,15° |
|---|---|---|---|
| Phase Number: | 4-1-2,4-2,2-2 | Noise: | ＜40db |
| Voltage: | 5,12,24vdc | Reduction Ratio: | 1/30,1/50,1/100,1/200 ,1/300,1/700 |
| High Light: | bldc gearbox,geared brushless dc motor,Brushless DC Gear Motor |
||

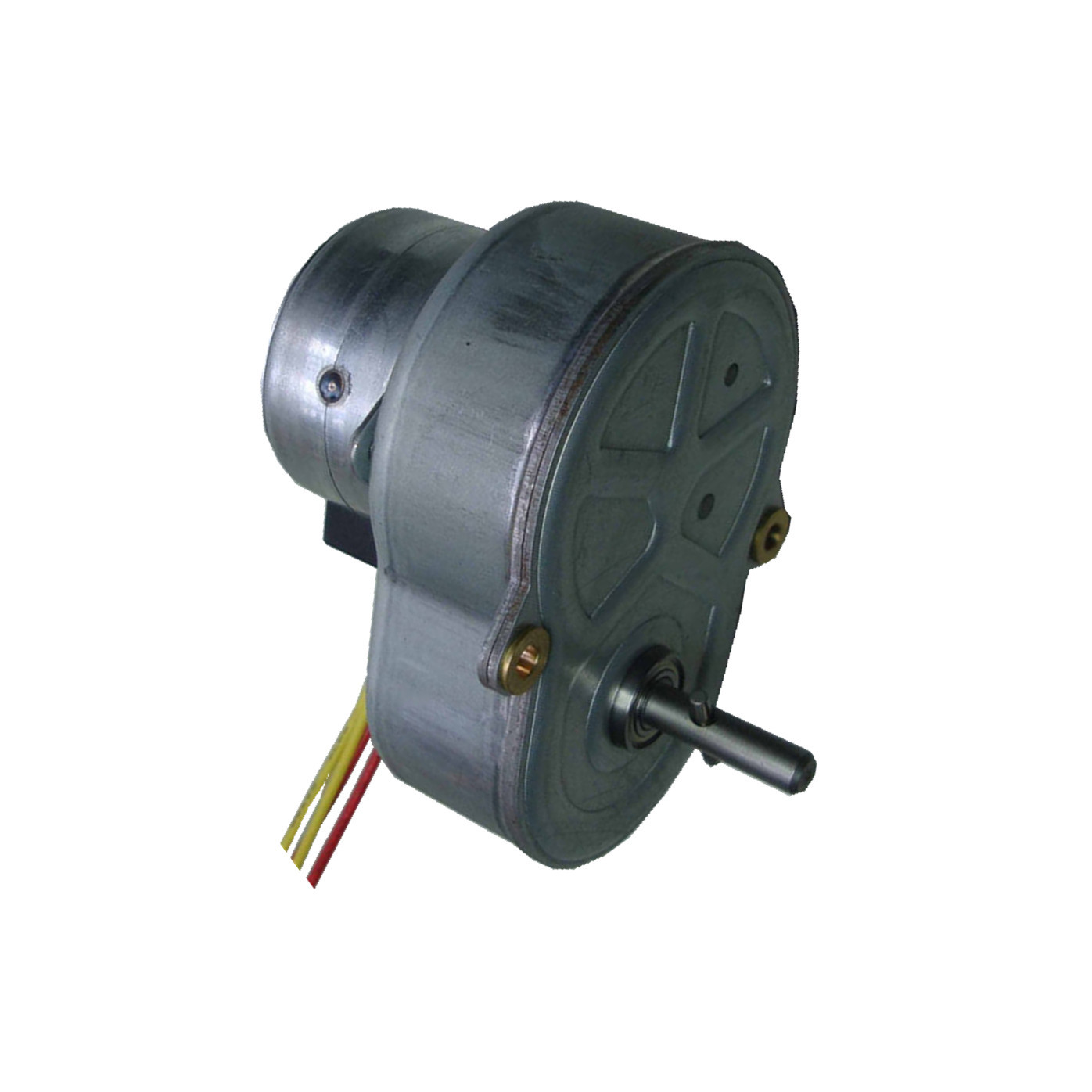

35BYJ pear shape stepping motor has the characteristics of simple structure, low noise, adjustable speed and long service life.
Parameters:
| Model | 35BYJ pear shape stepping motor | |||||||
| Phase number | 4-1-2 | 4-2 | 2-2 | |||||
| Step angle(°) | 7.5º | 15° | 15° | |||||
| Reduction ratio | 1/30 | 1/50 | 1/100 | 1/200 | 1/300 | 1/700 | ||
| Rated voltage(DCV) | 24 | 12V | 5V | |||||
| DC resistance(Ω) | 300Ω | 150Ω | 30Ω | |||||
| No load frequency(PPS) | ≥350 | ≥350 | ≥350 | |||||
| Empty sum frequency(PPS) | ≥500 | ≥500 | ≥500 | |||||
| Pull in torque(g.cm) | >1000 | >1000 | >1000 | |||||
| Motor self positioning torque(g.cm) | >1000 | >1000 | >1000 | |||||
| Coil temperature rise(K) | <60 | <60 | <60 | |||||
| Noise(db) | <40 | <40 | <40 | |||||
Drawing :
Applications:
The motor widely used in banking office equipment, electric curtains, advertising, scientific instruments, air conditioning and other fields,telecommunications equipment, printers, copiers, fax machines, scanners, textile machinery, medical treatment, automatic control, building control valves, massage chairs and stage lighting
