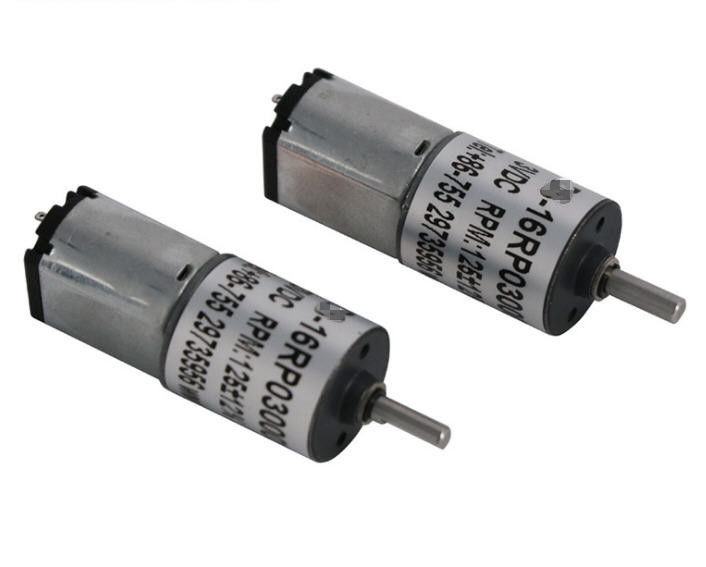

OWM-16RP030 16mm DC planetary gear motor
Drawing (mm)
Remark: find the length of gearbox "L" in below Technical Data of Gearbox.
Specifications
Specifications below are for reference only. Contact us for more.
| Model Number | Rated Volt. | No Load | At Max Efficiency | Stall | |||||
| Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| rpm | mA | rpm | mA | Kgf.cm | W | mA | Kgf.cm | ||
| OWM-16RP0300068500-64K | 6V | 132 | 70 | 100 | 100 | 0.1 | 0.10 | 150 | 0.38 |
| OWM-16RP0300068000-2418K | 6V | 3 | 55 | 1.8 | 110 | 2.3 | 0.04 | 190 | 6.4 |
| OWM-16RP03000912000-22.6K | 9V | 530 | 100 | 290 | 160 | 0.1 | 0.30 | 230 | 0.2 |
| OWM-16RP03001213500-22.6K | 12V | 597 | 100 | 364 | 150 | 0.1 | 0.37 | 230 | 0.3 |
| OWM-16RP03001214000-256K | 12V | 55 | 80 | 41 | 120 | 0.61 | 0.26 | 300 | 2.6 |
| OWM-16RP03001218000-1444K | 12V | 12 | 150 | 7 | 250 | 4 | 0.29 | 415 | 13.6 |
| OWM-16RP0300039000-256K | 3V | 35 | 220MAX | 22.2 | 294 | 0.78 | 0.895 | ||
| OWM-16RP0300038000-64K | 3v | 125 | 160MAX | 82.7 | 214 | 0.182 | 0.655 | ||
| Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in | |||||||||
What a Model Number Tells You?
We follow some rules to create each model number. A model number would tell you a lot of useful messages. Here is a sample.
So here we can learn that it is a 37mm Round Spur gear motor, 12V driving motor #555, no load input speed 6000rpm and reduction ratio 100:1. Hey, what about output speed? You need to do a little calculation. Input speed 6000rpm ÷reduction ratio 100 = 60rpm.
Technical Data of Driving Motor
| Model | #030 |
| Rated Voltage | 3V, 5V, 6V, 9V, 12V |
| Regular No Load Speed | 6000rpm,8000rpm,10000rpm, 15000rpm |
Technical Data of Gearbox
| Number of Stage | 1 | 2 | 3 | 4 | 5 |
| Reduction Ratio | 4, 4.75 | 16, 19, 22.5 | 64, 76, 90, 107 | 256, 304, 361, 428, 509 | 1024, 1216, 1444, 1714, 2036, 2418 |
| Length of Gearbox "L" mm | 15.8 | 15.8 | 19.4 | 23 | 26.6 |
| Rated Torque Kgf.cm (for reference only) | 0.05 | 0.1 | 0.4 | 1 | 2.3 |
Technical Data of Motor
| Motor model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | power | Torque | Current | ||
| V | mA | rpm | mA | rpm | gf.cm | W | gf.cm | mA | |
| OWM-0300038500 | 3 | ≤75 | 8500 | ≤280 | 6550 | 5 | 0.34 | ≥20 | ≥600 |
| OWM-03000610400 | 6 | ≤65 | 10400 | ≤190 | 7800 | 5 | 0.39 | ≥18 | ≥400 |
Applications:
Electric toys,office equipment,medical apparatus,electric tools,home appliance,automobile parts
