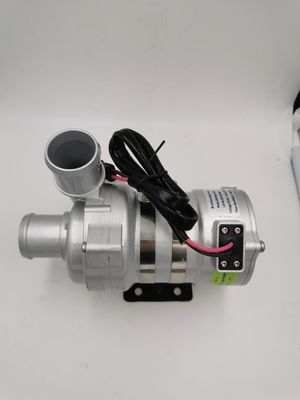

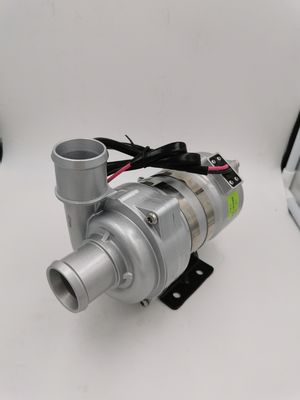

|Product Name:||Automotive Electronic DC Water Pump||Type:||Centrifugal Vane Pump|
|Working Voltage:||18V-32V||Application:||Cooling System Of BEV Bus BHEV|
|Color:||Silver||Material:||Die-casting Aluminum/Stainless Steel|
250W Automotive Brushless Water Pump,
BEV Bus Brushless Water Pump,
PHEV Automotive Water Pump
Magnetic force transmission
High efficiency brushless DC motor, low power consumption, high efficiency, long service life.
With wide range operating temperature
PWM signal speed controlling(optional)
Diagnostic signal output(optional)
With constant flow controlling
Reverse polarity protection
Dry running protection
Over Voltage, over current protection
Overload, over temperature protection
Pump head housing: Aluminum alloy
Impeller: PPS+GF Shield cavity: PPS+GF
Shaft sleeve: carborundum composite materials
Shaft: stainless steel(3CR14) shaft
Magnet housing: PPS plastic capsulation
Seal ring: EPDM
Driving rotor: PPS plastic capsulated magnet
Screws and nuts: SUS 304 stainless steel
Driving Motor : brushless motor
Motor wire frame :PPA GF
Pump housing: Die-casting aluminum case with sandblasting and anodizing +PE powder coating..
Bracket: Steel base
Bracket hoop: US 304 stainless steel
Waterproof based on IP68 rating (en60529)
Connector model: AMP282104-1 (matched Plug AMP282080-1)
Nozzle diameter:40mm (1.5 inch)
OWP-BL43-300 series pumps are centrifugal pumps which require pre-filled,
The pump installed in the lowest position of the system to ensure that the impeller is always immersed in the liquid, or pre-filled the pump before power on .
1: Pump should not be dry-running, even though it can dry-running for 15 minutes (after 15 minutes dry-running, it will automatically stop), Dry running will makes noise, also increasing abrasion to the shaft and shaft sleeve.
2:Use the recommended diameter pipe connecting the pump inlet, if you use a smaller diameter hose pump inlet, Due to the negative pressure in the pump, the outside air easier enter to the pump through the pipeline, it will make the pump performance degradation, and also the air bubbles make damage to the pump.
3: As viewed from the pump inlet direction, the impeller rotates clockwise (see the arrow on the outlet port).
4: The pump can be installed vertically or horizontally mounted (see figure 1 ) When installed vertically, the outlet port should be upward .
5:In order to avoid the dry- running (air get stuck in impeller),the water pump outlet port should be vertical or in the upper of the impeller. (see figure 1 )
6: The connected pipe should be vertically mounted (or no elbow in 20cm )to make the air discharged easily, the outlet pipe should not be used less than 90 degrees elbow (see figure 2).
7: Can't use the seawater or other heavy pollution with big grain impurity liquid as the liquid medium .
Connector model and the corresponding electrical properties (as shown below):
(matched Plug AMP282080-1)
1.Working ambient temperature:-40℃--120℃, should try to avoid close to three-element catalytic, gas discharge pipe system and engine during the installation, ensure the working environment temperature.
2.The installation position of the water pump should as much as possible close to the low water level , to extend the service life of the pump.
3.Please use the pump far from the dusty environment, the dust is harmful to reduce the service life
4.Pay attention to the purity of the water, avoid to jam and impeller-blocked to reduce the service life of pump
Cooling system of engineer vehicle
