8 Pole Geared Nema 34 Brushless Dc Motor

8 Pole Geared Nema 34 Brushless Dc Motor

MOQ: 5pcs
Price: Negotiable
Standard Packaging: cartons+packing foams
Delivery Period: 4~6 weeks
Payment Method: T/T,L/C
Supply Capacity: 5000pcs/month
Detail Information
Place of Origin
China
Brand Name
OWO
Certification
CE, ROHS, UL
Model Number
OWM86BLS Series
Winding Type:
Delta
Hall Effect Angle:
120 Degree Electrical Angle
Number Of Poles:
8
Number Of Phase:
3
Rated Voltage:
48VDC
Rated Speed:
3000rpm
Torque:
0.35-7.1N.m
Model:
OWM86BLS58/71/98/125
Highlight:

nema 34 brushless dc motor

,

nema 34 bldc motor

,

nema 34 brushless motor

Product Description

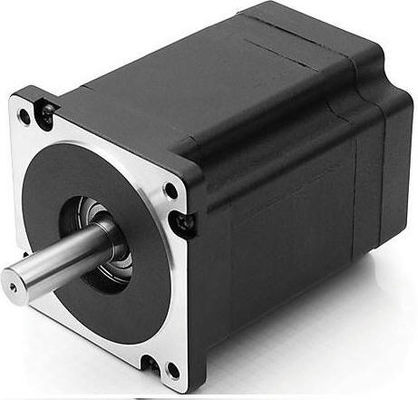

86mm Brushless DC motor,with high torque,perfect performance


8 Pole Geared Nema 34 Brushless Dc Motor 0

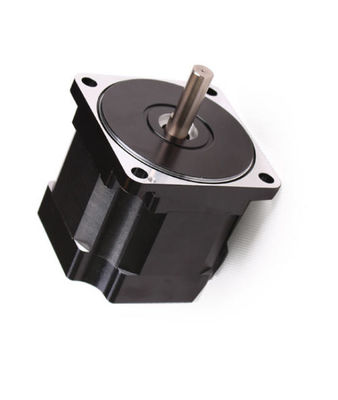

Size 86mm Brushless Motor





General specifications:

Winding type
Delta
Hall effect angle
120 degree electrical angle
Shaft run out
0.05mm
Radial play
0.02mm@450g
End play
0.08mm@450g
Max. radial force
220N @ 20mm from the flange
Max. axial force
60N
Insulation class
Class B
Dielectric strength
500VDC for one minute
Insulation resistance
100MΩMin., 500VDC






















Electric Connection:
Lead No. Lead color Lead gauge Function Description
1 Red

UL1007

26AWG

Vcc Supply voltage for hall
2 Blue Hall A
3 Green Hall B
4 White Hall C
5 Black GND Ground for hall sensors
6 Yellow&Y/W

UL1007

20AWG

Phase A
7 Red&R/W Phase B
8 Black&B/W Phase C

Motor Specification:

Model OWM86BLS58 OWM86BLS71 OWMBLS98 OWM86BLS125
Number of poles 8 8 8 8
Number of phase 3 3 3 3
Rated voltage                   VDC 48 48 48 48
Rated speed                     RPM 3000 3000 3000 3000
Rated torque                     N.m 0.35 0.7 1.4 2.1
Rated pwoer                     W 110 220 440 660
Peak torque                       N.m 1.05 2.1 4.2 6.3
Peak current                      A 11 19 33 55
Line to line resistance       Ohms 1.05 0.36 0.2 0.16
Line to line inductance       mH 2.2 1.05 0.48 0.3
Torque constant                 Nm/A 0.1 0.11 0.13 0.11
Back E.M.F 10.5 11.5 13.5 11.5
Rotor inertia                        g.cm2 400 800 1600 2400
Body length(L)                    mm 58 71 98 125
Weight                                 kg 1.5 1.85 2.6 4



Dimension:

8 Pole Geared Nema 34 Brushless Dc Motor 1



►Above items are standard products, we can design and make as customer's request.
