| MOQ: | 5 sets |
| Price: | Negotiable |
| Standard Packaging: | Standard packing |
| Delivery Period: | 5-25days |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 300sets/days |

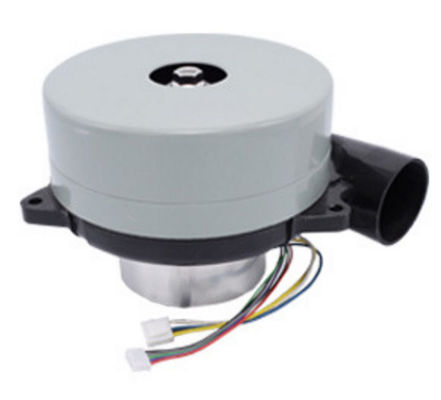

14.5 Kpa 48V DC air vacuum blower for vacuum cleaner,Air purifier,Hand dryer, Air bubble machine
1:Brushless DC Air Blower Features:
1: High speed, specialized high-speed ball bearing(NMB) offering long service life and lower noise
2: High pressure and airflow output by compact size design
3: High efficiency, much more efficient than brush motor blower
4: High reliability, specialized controller make the working more reliable
5: High intelligent, PWM speed regulation, positive inversion, PG signal feedback, intelligent controlling
2:Brushless DC Air Blower Applications:
1: Buffer air cushion
2: Intelligent closestool
3: Electric-Drive phlegm-Sucker
4: Central ventilation system
5:Air purifier
6:Hand dryer
7: Air bubble machine
8: Ventilating device
9: Vacuum cleaner
3:Products Parameters
| Model | OWB1412-140 | OWB1412-130 |
| Rated Voltage | 48VDC | 48VDC |
| Rated current(open) | 8A | 6.5A |
| Air flow(open) | 84M3/H | 80M3/H |
| Motor Speed(open) | 14000 RPM | 13000RPM |
| Rated current(closed) | 5.6A | 3.7A |
| Air pressure(closed) | 14.5kPa | 12.5kPa |
| Motor Speed(closed) | 16900 RPM | 16000RPM |
| Motor pole | 4 | 4 |
| Phase Resistance | 0.9 Ohm | 1.0 Ohm |
| Noise | 88 dBA | 85 dBA |
| Ball Bearing | NMB High-speed ball bearing | |
| Driving motor | 3 phase brushless DC motor | |
| Hall sensor angle | 120° | |
| RPM-Pulse | 1 Hz=30rpm/min | |
| Winding type | Delta | |
| Winding withstand Voltage | 500VDC (1 minute ) | |
| Insulation Class | Class F | |
| Blower weight | 1500g | |
| IP grade | IP54 | |
| Operation temperature | -20℃~ 50℃ | |
| Service life (under 40℃) | 10000 hours | |
4:Products performance
OWB1412 brushless DC vacuum blower commutating period
OWB1412 brushless DC blower Performance curves
5:Overall dimensions
6:Wiring diagram
| Pin 1 | Yellow | Motor phase A |
| Pin 2 | Blue | Motor phase B |
| Pin 3 | White | Motor phase C |
| Pin 4 | Red | +5V |
| Pin 5 | Purple | Hall A |
| Pin 6 | Green | Hall B |
| Pin 7 | Grey | Hall C |
| Pin 8 | Black | GND |
7:Attentions
1:Do not working under the max air pressure, the air flow is too small at max air pressure, and it's not safe for using.
2:Add a filter attach to the intake makes the blower bearing longer service life.
3:The correct rotation direction is CCW
4:Do not use the blower in High temperature ,high humidity, high magnetic fields
5:Please use suitable power supply for the blower.
6:Contact us for matched controller for the blower.
|
|
