Home ProductsBLDC Centrifugal Fan

12v Dc Brushless Blower Cooling Fans

12v Dc Brushless Blower Cooling Fans

  • 12v Dc Brushless Blower Cooling Fans
  • 12v Dc Brushless Blower Cooling Fans
  • 12v Dc Brushless Blower Cooling Fans
  • 12v Dc Brushless Blower Cooling Fans
  • 12v Dc Brushless Blower Cooling Fans
  • 12v Dc Brushless Blower Cooling Fans
12v Dc Brushless Blower Cooling Fans
Product Details:
Place of Origin: China
Brand Name: JUYI
Model Number: OWB-65V5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Working Voltage: 12V/24VDC Max Power: 320W
Max Speed: 76000RPM Air Pressure: 13Kpa, 23Kpa(suction
High Light:

12v dc brushless blower cooling fans

,

12v dc centrifugal blowers

,

12 volt centrifugal fans

Product Description

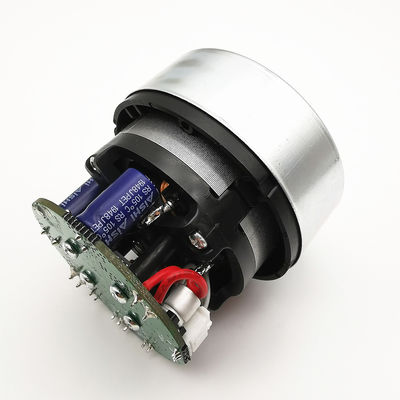

OWB-65V5 is totally new designed blower for vaccum cleaner or hand drier.its has high speed at 76000RPM,and the BLDC motor is totally different design than other suppliers'. Low costs and high efficient makes this blower more competitive .
12v Dc Brushless Blower Cooling Fans 0
Working voltage
12VDC
Max speed
76000RPM
Max power
320W
Air pressure
13Kpa, 23Kpa(suction)
Max noise
80dBA
Speed Control (PWM)
Open-loop or closed-loop
12v Dc Brushless Blower Cooling Fans 1
12v Dc Brushless Blower Cooling Fans 2
12v Dc Brushless Blower Cooling Fans 3
12v Dc Brushless Blower Cooling Fans 4
12v Dc Brushless Blower Cooling Fans 5
Direction for use




1:12V or 24V DC input (customizable)

2:Speed gear:
Low speed- high speed- stop
(customizable)
  •


3:Hall sensored BLDC motor

4:Over-temperature protection

5:Charging signal output(high level)

6:Signal GND

7:Running indicate signal output
(5V high level)

8:Speed control: closed-loop or open-loop
12v Dc Brushless Blower Cooling Fans 6
12v Dc Brushless Blower Cooling Fans 7
Detailed Images
12v Dc Brushless Blower Cooling Fans 8
