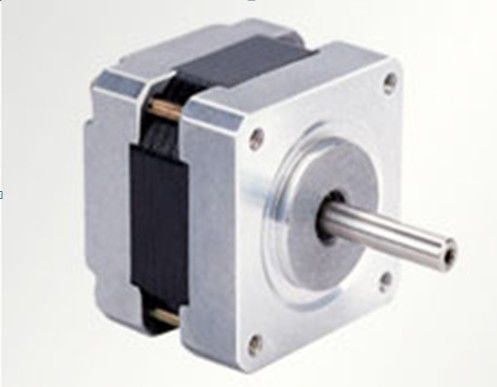

8 To 24N Cm 39mm 2 Phase Brushless Bldc Stepper Motor

8 To 24N Cm 39mm 2 Phase Brushless Bldc Stepper Motor

  • 8 To 24N Cm 39mm 2 Phase Brushless Bldc Stepper Motor
  • 8 To 24N Cm 39mm 2 Phase Brushless Bldc Stepper Motor
8 To 24N Cm 39mm 2 Phase Brushless Bldc Stepper Motor
Product Details:
Place of Origin: CHINA
Brand Name: OWO
Certification: CCC. ROHS.CE
Model Number: 39HS2004A4,39HS2606A4,39HS3406A4,39HS3412A4.....
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: Negotiable
Packaging Details: SUITE FOR EXPORT
Delivery Time: AS CONFIRMED
Payment Terms: Western Union, T/T,
Supply Ability: 10000PCS
Contact Now
Detailed Product Description
SIZE: 39MM Length: 20mm,26mm,34mm,40mm
Lead Wire: 4 Or 6 Step Angle: 1.8 Degree
Weight: 100g. 120g,160g,210g Holding Torque: 8-24N.cm
High Light:

Brushless Bldc Stepper Motor

,

39mm Stepper Motor

,

2 Phase Bldc Stepper Motor

1.8 Degree size39mm 2-phase high torque Hybrid stepper motor



●General Specification:

Item Specifications
Step Angle 1.8°



Step Angle Accuracy

±5%
Resistance Accuracy ±10%
Inductance Accuracy ±20%



Temperature Rise

80℃ Max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100MΩMin.500VDC
Dielectric Strength 500V AC 1minute



●Electrical Specifications:

Model No.

Step angle

(°)

Current

(A)

Resistance

(Ω)

Inductance

/Phase

(mH)

Holding Torque

(N.cm)

Detent Torque

(N.cm)

Rotor Inertia

(g.cm2)

Motor Length

(mm)

Lead Wire

(No.)

Weight

(g)

39HS2004A4 1.8 0.42 18 12 8 0.5 12 20 4 100
39HS2606A4 1.8 0.6 9 10 14 0.8 14 26 4 120
39HS3406A4 1.8 0.6 12 13 18 1.0 19 34 4 160
39HS3412A4 1.8 1.2 3.2 3 16 1.0 19 34 4 160
39HS3404A6 1.8 0.4 30 14 12 1.0 19 34 6 160
39HS4006A4 1.8 0.6 12 20 24 1.2 24 40 4 210
39HS4012A4 1.8 1.2 3.8 6.5 24 1.2 24 40 4 210
39HS4004A4 1.8 0.4 30 22 18 1.2 24 40 4 210
*We can manufacture products according to customer’s requirements



  • Mechanical Dimensions: ● Wiring Diagram:
  • 8 To 24N Cm 39mm 2 Phase Brushless Bldc Stepper Motor 0
