| Place of Origin: | China |
| Brand Name: | OWO |
| Certification: | CE, |
| Model Number: | 35BYJ -21A |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | suite for export |
| Delivery Time: | as confirmed |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/month |
| Temperature Rise: | 40K Max | Environment Temperature: | (-20℃~+80℃) |
|---|---|---|---|
| Insulation Resistance: | 100MΩ Min 500VDC | Insultation Voltage: | 600VAC For 1s |
| Insulation Grade: | E | Weight: | 80g |
| High Light: | Waterproof Permanent Magnet Stepper Motor,2 Phase Permanent Magnet Stepper Motor,Waterproof pm stepper motor |
||

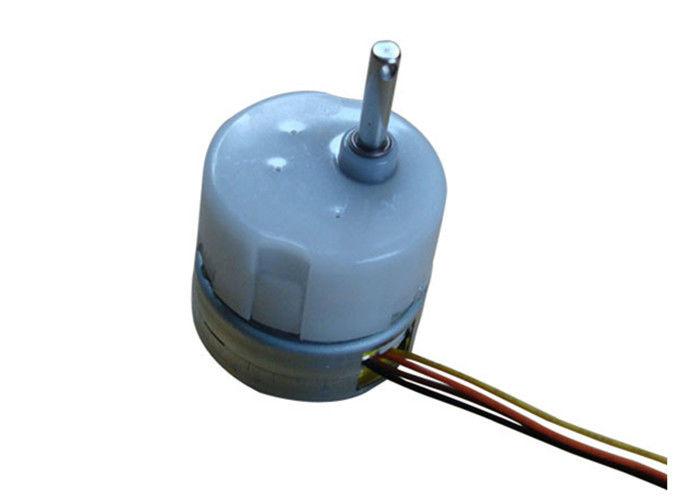

permanent magnet deceleration stepper motor 35BYJ-21A using for textile machine,automatic control
35BYJ permanent magnet stepping motor
35BYJ permanent magnet deceleration stepper motor has the
characteristics of simple mechanism, low noise,
adjustable speed, long service life.
Parameters:
| Model | step angle | Rated voltage | Reduction Ratio | Resistance | Pullin Torque | Noload starting frequency | Noload Driving requency | Phase |
| (°) | V DC | i | Ω | g.cm(200pps) | pps | pps | ||
| 35BYJ-21A | 7.5/21 | 6.5 | 1/21 | 7.5 | 1600 | 400 | 500 | 2 |
Drawing:
Application:
This motor widely using in copiers, fax machines, scanners, textile machinery, medical treatment, automatic control, building control valves, massage chairs and stage lighting, automobile, electric control system
