Product Details:
|
| Temperature Rise: | 40K Max | Environment Temperature: | -20℃~+80℃ |
|---|---|---|---|
| Insulation Resistance: | 100MΩ Min 500VDC | Insultation Voltage: | 600VAC For 1s |
| Weight: | 60g | Efficiency: | 80% |
| Rated Voltage: | 5V | Rated Current: | 0.01~0.4A |
| High Light: | PM Permanent Magnet Stepper Motor,Magnet PM Stepper Motor,Permanent PM Stepper Motor |
||

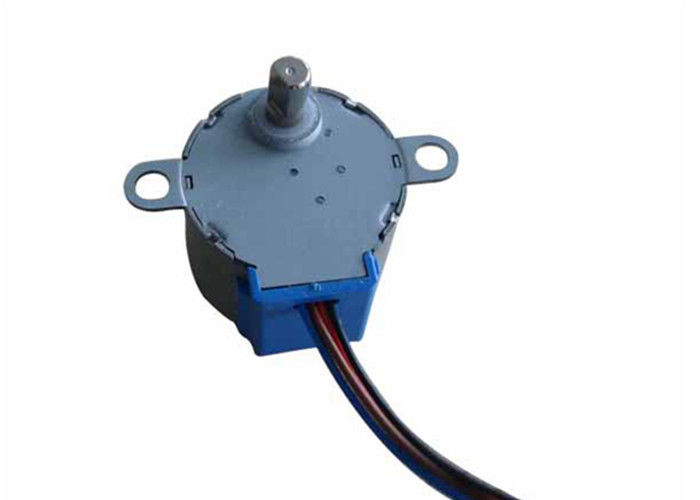

28mm Permanent magnet DC stepping gear motor, using for electric curtains, advertising, scientific instruments
28BYJ permanent magnet stepping motor
28BYJ permanent magnet deceleration stepper motor has the
characteristics of simple mechanism, low noise,
adjustable speed, long service life.
Parameters:
| model | step angle | rated voltage | Reduction Ratio | Resistance | Pullin torque |
Motor self positioning torque |
Noload starting frequency | Noload driving frequency | Phase |
| (°) | V DC | i | Ω | g.cm(200pps) | g.cm | pps | pps | ||
| 28BYJ48-64 | 5.625/64 | 12 | 1/64 | 200 | 400 | 350 | 500 | 600 | 4 |
| 28BYJ48-64 | 5.625/64 | 5 | 1/64 | 30 | 400 | 350 | 500 | 600 | 4 |
| 28BYJ48-64 | 11.25/64 | 12 | 1/64 | 150 | 400 | 350 | 500 | 600 | 2 |
| 28BYJ48-25 | 5.625/25 | 12 | 1/25 | 200 | 200 | 200 | 500 | 600 | 4 |
| 28BYJ48-25 | 5.625/25 | 5 | 1/25 | 40 | 200 | 200 | 500 | 600 | 4 |
| 28BYJ48-25 | 11.25/25 | 12 | 1/25 | 150 | 200 | 200 | 500 | 600 | 2 |
| 28BYJ48-16 | 5.625/16 | 12 | 1/16 | 150 | 120 | 150 | 500 | 600 | 4 |
| 28BYJ48-16 | 5.625/16 | 5 | 1/16 | 40 | 120 | 150 | 500 | 600 | 4 |
| Above are normal products, we can make as customer's request. | |||||||||
Drawing:
Application:
This motor widely using inPrinters, photocopiers, fax machines, scanners, textile machinery, medical, automatic control.
