| MOQ: | 50pcs |
| Price: | Negotiable |
| Standard Packaging: | suite for export |
| Delivery Period: | as confirmed |
| Payment Method: | L/C, T/T, Western Union,PAYPAL |
| Supply Capacity: | 10000PCS/Month |
Features:

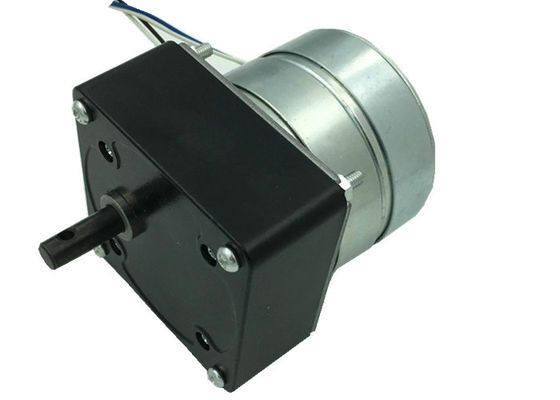

OW55KTY AC synchronous motor has the characteristics of simple structure, low noise, constant speed and long service life
GENERAL SPECIFICATIONS:
Temperature rising: ≤60K
Environment temperature: -20℃~+80℃
Insulation resistance: 100MΩ min 500VDC
Insulation voltage: 1800VAC for 1S
Insulation level: E
Technical Parameters:
| Specification model | OW62KTYJ | |||||||||||
| Rated voltage | AC/V | 24 | 110 | 220 | ||||||||
| Power frequency | Hz | 50/60 | ||||||||||
| Adaptive capacitance | uF | 30uF/100V | 2.5uF/250V | 0.33 uF/630V | ||||||||
| Starting voltage | AC/V | 16 | 80 | 154 | ||||||||
| Rated power | W | 15-20 | ||||||||||
| Rated current | mA | 60-300 | ||||||||||
| Dielectric Strength | V/1S | 1500V/S | ||||||||||
| Rated speed | rpm | 2.7 | 4 | 5 | 8 | 15 | 20 | 25 | 30 | 50 | ||
| Rated torque | Kg.cm | 100 | 60 | 50 | 30 | 20 | 15 | 12 | 9 | 5 | ||
| Running direction | Bidirectional reversible | |||||||||||
ELECTRICAL SPECIFICATIONS:
| Model | Rated voltage | Frequency | Rated current | Power | Reduction Ratio | speed | Rated Torque | Moving direction | Starting capitance | Weight |
| V AC | Hz | mA | W | i | rpm | Kg.cm | CW/CCW | uf/V | g | |
| 62KTYJ-2.7A | 220 | 50 | ≤100 | ≤18 | 139 | 2.7 | ≥90 | CW/CCW | 0.33uf/630V | 950 |
| 24 | 50 | ≤300 | ≤18 | 139 | 2.7 | ≥90 | CW/CCW | 30uf/100V | 950 | |
| 62KTYJ-4A | 220 | 50 | ≤100 | ≤18 | 94 | 4 | ≥50 | CW/CCW | 0.33uf/630V | 950 |
| 24 | 50 | ≤300 | ≤18 | 94 | 4 | ≥50 | CW/CCW | 30uf/100V | 950 | |
| 62KTYJ-5A | 220 | 50 | ≤100 | ≤18 | 75 | 5 | ≥50 | CW/CCW | 0.33uf/630V | 950 |
| 24 | 50 | ≤300 | ≤18 | 75 | 5 | ≥50 | CW/CCW | 30uf/100V | 950 | |
| 62KTYJ-8A | 220 | 50 | ≤100 | ≤18 | 47 | 8 | ≥30 | CW/CCW | 0.33uf/630V | 950 |
| 24 | 50 | ≤300 | ≤18 | 47 | 8 | ≥30 | CW/CCW | 30uf/100V | 950 | |
| 62KTYJ-15A | 220 | 50 | ≤100 | ≤18 | 25 | 15 | ≥15 | CW/CCW | 0.33uf/630V | 950 |
| 24 | 50 | ≤300 | ≤18 | 25 | 15 | ≥15 | CW/CCW | 30uf/100V | 950 | |
| 62KTYJ-20A | 220 | 50 | ≤100 | ≤18 | 18.75 | 20 | ≥10 | CW/CCW | 0.33uf/630V | 950 |
| AC220V AC115V AC24V three voltage can be choose. Frequency: 50Hz/60Hz. | ||||||||||
| Above are normal products, we can make as the customer's request. | ||||||||||
Drawing :
Applications:
The motor widly using on telecommunications equipment, printers, copiers, fax machines, scanners, textile machinery, medical treatment, automatic control, building control valves, massage chairs and stage lighting, automobile, electric control system, electric curtains, advertising, scientific instruments, air conditioning and other fields.
|
|
