| MOQ: | 50pcs |
| Price: | Negotiable |
| Standard Packaging: | suite for export |
| Delivery Period: | as confirmed |
| Payment Method: | L/C, T/T, Western Union,PAYPAL |
| Supply Capacity: | 10000PCS/Month |
Features:

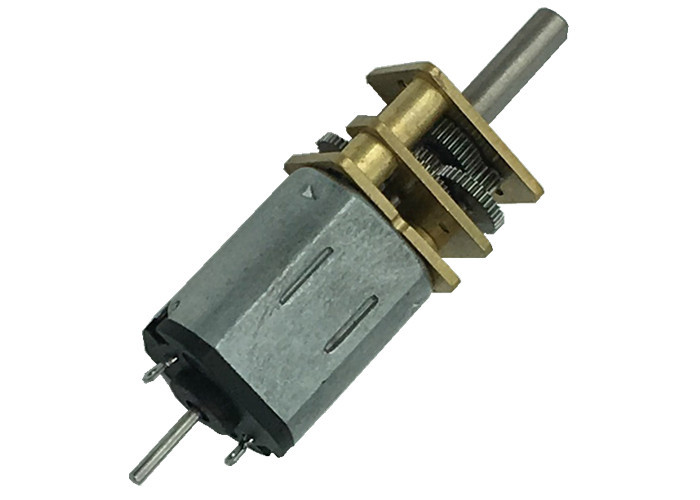

OW12ZYJ DC gear motor has the characteristics of simple structure, low noise, constant speed and long service life
Gernoral Specification:
Temperature rising: 40K
Environment temperature: -20℃~+80℃
Insulation resistance: 100MΩ min 500VDC
Insulation voltage: 500VAC for 1S
Insulation level: E
| Model specification | OW12ZYJ | ||||||||
| Use voltage | DC/V | 1.5-12 | |||||||
| Reduction ratio | 1/30 | 1/50 | 1/100 | 1/150 | 1/200 | 1/298 | 1/380 | 1/980 | |
| No-load speed | rpm | 300 | 160 | 80 | 60 | 40 | 30 | 23 | 8 |
| No-load current | mA | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Output torque | g.cm | 100 | 150 | 300 | 400 | 600 | 800 | 1000 | 2400 |
| Load speed | rpm | 250 | 120 | 65 | 48 | 30 | 26 | 17 | 6 |
| load current | mA | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Power | W | 0.5-1.5 | |||||||
| Running direction | Bidirectional reversible | ||||||||
ELECTRICAL SPECIFICATIONS:
| Model | Rated voltage | motor speed | Reduction Ratio | Power | No-load speed | No-load current | Rated speed | Rated current | Rated load | Stalling torque | Stalling current |
| V DC | rpm | 1:xxx | W | rpm | mA | rpm | mA | Kg.cm | Kg.cm | mA | |
| OW12ZYJ-25A | 3 | 7500 | 298 | 1 | 25 | 50 | 20 | 150 | 0.6 | 2 | 500 |
| OW12ZYJ-150A | 6 | 15000 | 100 | 1 | 150 | 50 | 120 | 150 | 0.3 | 1.5 | 500 |
| OW12ZYJ-80A | 6 | 20000 | 250 | 1 | 80 | 60 | 70 | 160 | 0.5 | 2 | 600 |
| Normal reduction ratio:1/10 1/20 1/30 1/50 1/100 1/150 1/200 1/250 1/298 1/1000 | |||||||||||
| Above are normal products, we can make as the customer's request. | |||||||||||
Drawing :
Applications:
The motor widly apply to Advertising exhibition equipment, medical equipment, stabilizing voltage power supply, towel machine, photographic equipment and automatic control instrument and other fields.
|
|
