| Place of Origin: | china |
| Brand Name: | OWO |
| Certification: | CE, Rohs |

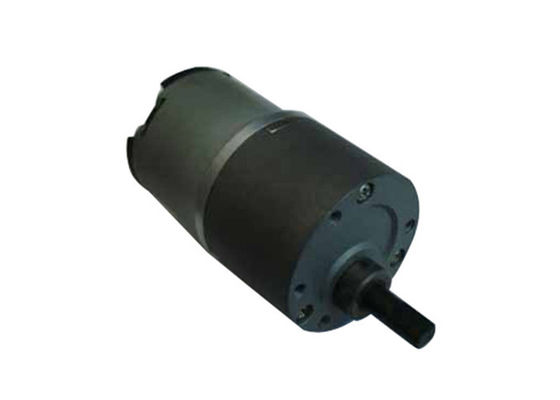

| Model Number: | OW37ZYJ DC Gear motor |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | suite for export |
| Delivery Time: | as confirmed |
| Payment Terms: | L/C, T/T, Western Union,PAYPAL |
| Supply Ability: | 10000PCS/Month |
| Insulation Resistance: | 100MΩ Min 500VDC | Insulation Voltage: | 500VAC For 1Min |
|---|---|---|---|
| Insulation Level: | E | Rated Voltage: | 6~24v |
| Rated Speed: | 3000~10000rpm | 3c Rated Voltage Range: | Less Than 36VDC |
| Weight: | 150g | ||
| High Light: | dc reduction gear motor,dc motor gearbox high torque |
||
Features:
OW27ZYJ DC gear motor has the characteristics of simple structure, low noise, constant speed and long service life
Gernoral Specification:
Temperature rising: 40K
Environment temperature: -20℃~+80℃
Insulation resistance: 100MΩ min 500VDC
Insulation voltage: 500VAC for 1min
Insulation level: E
| Model specification | OW37ZYJ | ||||||||||
| Use voltage | DC/V | 3V-24 | |||||||||
| Reduction ratio | 1/10 | 1/20 | 1/30 | 1/50 | 1/100 | 1/150 | 1/200 | 1/300 | 1/540 | 1/700 | |
| No-load speed | rpm | 800 | 400 | 250 | 150 | 80 | 50 | 40 | 25 | 14 | 10 |
| No-load current | mA | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Output torque | kg.cm | 0.2 | 0.4 | 0.6 | 1 | 2 | 3 | 4 | 6 | 11 | 14 |
| Load speed | rpm | 700 | 350 | 210 | 130 | 70 | 40 | 31 | 20 | 10 | 8 |
| Load current | mA | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| Power | W | 5-10 | |||||||||
| Running direction | Bidirectional reversible | ||||||||||
ELECTRICAL SPECIFICATIONS:
| Model | Rated Voltage | motor speed | gear ratio | Power | No-load speed | No-load current | Rated speed | Rated current | Rated load | Stall torque | Stall current |
| V DC | rpm | 1:xxx | W | rpm | mA | rpm | mA | Kg.cm | Kg.cm | mA | |
| OW37ZYJ-60A | 6 | 3000 | 50 | 5 | 60 | 100 | 50 | 250 | 2 | 6 | 900 |
| OW37ZYJ-60A | 12 | 6000 | 100 | 5 | 60 | 100 | 50 | 250 | 4 | 10 | 900 |
| OW37ZYJ-24A | 24 | 8000 | 330 | 5 | 24 | 100 | 20 | 250 | 10 | 20 | 1000 |
| Normal gear ratio:1/10 1/20 1/30 1/50 1/75 1/100 1/150 1/200 1/330 1/470 1/700 | |||||||||||
| Above are all normal products, we can make as the customer's request. | |||||||||||
Drawing :
Applications:
The motor widly using on photographic equipment and automatic control instrument and other fields.
