Product Details:
|
| Voltge: | 12V,24V,36V,48V,110V,220V | Current: | 5A,10A,20A,30A,50A,100A |
|---|---|---|---|
| Closed Loop: | Current Closed Loop Or Speed Closed Loop | Motor Size: | 22mm,35mm,42mm,57mm,86mm |
| Motor Speed: | 100-100000RPM | Customized Service: | Yes |
| Technical Support: | Yes | ||
| High Light: | 3 phase bldc driver,3 phase bldc motor drivers,3 phase bldc motor with hall sensors |
||

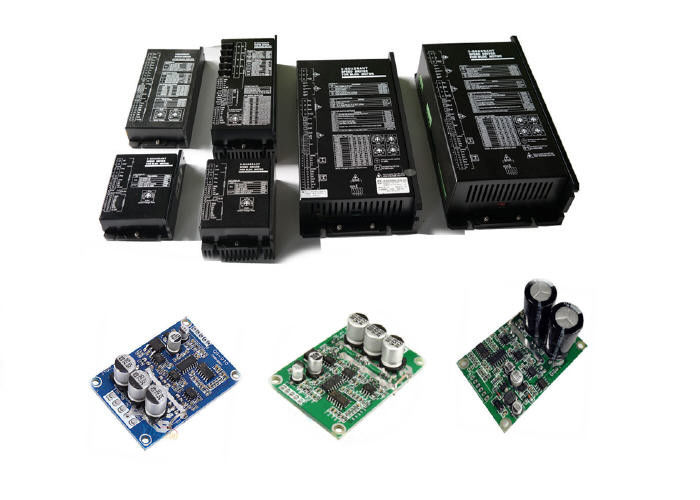

Brushless DC motor driver,speed controller,applied to Hall or sensorless BLDC motors
DK Series brushless DC motor
NEMA 09 NEMA 11 NEMA 13 NEMA 17 NEMA 23 NEMA 34 brushless dc motor
| Model: |
OD (mm) |
Phase resistance (Ω) | Inductance (Mh) | Rated voltage(V) | Rated speed (rpm) |
Rated torque (Nm) |
Photo |
| DK22BL | 22 | 11.8 | 4.2 | 24 | 3500 | 0.022 |  |
| DK28BL | 28 | 4.67 | 2.2 | 24 | 3100 | 0.05 | |
| DK33BL | 33 | 14.2 | 7 | 24 | 4500 | 0.022 | |
| DK42BL | 42 | 0.48 | 0.44 | 24 | 3000 | 0.36 | |
| DK42RBL | 42 | 0.71 | 0.86 | 24 | 4000 | 0.15 | |
| DK45BL | 45 | 0.61 | 0.47 | 24 | 4800 | 0.13 | |
| DK57RBL | 57 | 0.35 | 1 | 36 | 4000 | 0.42 | |
| DK57RHBL | 57 | 0.2 | 0.25 | 36 | 4000 | 0.8 | |
| DK57BL | 57 | 0.5 | 0.6 | 36 | 3000 | 0.6 | |
| DK86BL | 86 | 0.16 | 0.03 | 48 | 3000 | 2.1 | |

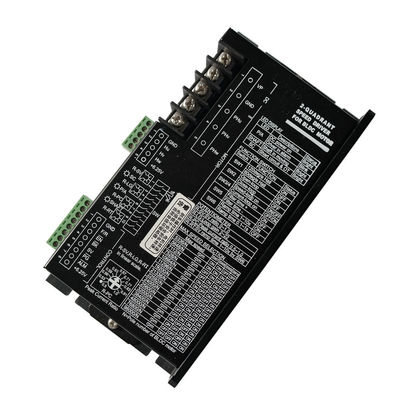

BLSD Series pure hardware brushless DC motor speed driver / speed controller
DC12V,DC24V,DC36V,DC48V,DC72V,DC155V,DC310V ,AC110,AC 220V brushless motor driver
BLSD 24 05 DC(AC,WDC) – 2Q – S (N,H,HV)
BLSD: brushless DC motor speed driver
24: operating voltage 24V
05: peak current limit 5A
DC: DC power input
AC:AC power input
WDC:wide range input voltage
2Q: 2-Quadrant driving mode
S:S series (small size and fixed parameter)
N:N series (normal size and variable parameters)
H:H series (high current and variable parameters)
HV: HV series (high voltage motor driver)
| Model |
Operatable Voltage (V) |
Peak current limit (A) | Description | Sensor | Photo |
| BLSD XXXX DC – 2Q – S | DC:12V,24V,36V,48V | 5A,10A,15A,20A | compact size with fixed parameter | Hall | |
| BLSD XXXX DC – 2Q – N | DC:12V,24V,36V,48V | 10A,20A,30A |
normal size and variable parameters
|
Hall | |
| BLSD XXXX DC/WDC – 2Q – H |
DC:24V,36V,48V WDC:15V-55V |
30A.50A,75A,100A |
high current and variable parameters
|
Hall | |
| BLSD XXXX DC/AC – 2Q – HV |
AC:110V(45-140V),220V(45-275V) DC:155V(60-195V),310V(60-385V) |
4A,8A,16A,24A |
high voltage motor driver
|
Hall | |
JYQD Series brushless DC motor speed driver / speed controller board
DC12V-36V, 15A,20A,500W,700W brushless motor driver board
| Model |
Operatable Voltage (V) |
Peak current limit (A) | Description | Sensor | Photo |
| JYQD-V7.3E2 | DC 12V-36V | ≤15A | opretable voltage:DC 12V-36V, output power :500W | Hall | |
| JYQD-V7.3E1 | DC 12V-36V | ≤15A | opretable voltage:DC 12V-36V, output power :500W | Hall | |
| JYQD-V7.5E | DC 12V-36V | ≤20A |
opretable voltage:DC 12V-36V, output power :700W
|
Hall | |
| JYQD-V6.5 |
DC 12V-36V |
≤20A |
opretable voltage:DC 12V-36V, output power :700Wv |
Sensorless | |
| JYQD-V6.3E1 |
DC 12V-36V |
≤15A |
opretable voltage:DC 12V-36V, output power :500W
|
Sensorless | |
We offer ODM service for customized development
