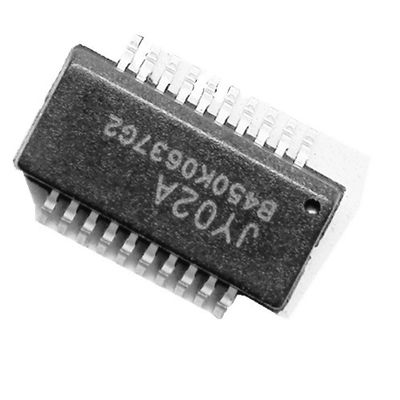

SPWM 3 Phase Sensorless Speed Control Brushless Bldc Motor Driver IC

SPWM 3 Phase Sensorless Speed Control Brushless Bldc Motor Driver IC
SPWM 3 Phase Sensorless Speed Control Brushless Bldc Motor Driver IC SPWM 3 Phase Sensorless Speed Control Brushless Bldc Motor Driver IC SPWM 3 Phase Sensorless Speed Control Brushless Bldc Motor Driver IC

Large Image :  SPWM 3 Phase Sensorless Speed Control Brushless Bldc Motor Driver IC

Product Details:
Place of Origin: China
Brand Name: JUYI
Model Number: JY02A
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: Negotiable
Packaging Details: Carton+packing foams
Delivery Time: 5-30days
Payment Terms: T/T
Supply Ability: 100000 pcs per day

SPWM 3 Phase Sensorless Speed Control Brushless Bldc Motor Driver IC

Description
Operating Voltage: 4.5-5.5V Drive Mode: SPWM
Sensor: Hall Sensor Or Sensorless Operating Temperature: -55-125 ℃
Overload Protection: Yes Constant Current Drive: Yes
Current Close- Loop: Yes Application: JYQD-V7.3E
Technical Support: Yes
High Light:

Speed Control Bldc Motor Driver IC

,

brushless motor driver ic

,

bldc driver ic

brushless DC motor control IC JY02A ,specifically for sensorless BLDC motor

Sensorless  Brushless DC motor control IC



SPWM 3 Phase Sensorless Speed Control Brushless Bldc Motor Driver IC 0


In order to improve the performance of sensorless  brushless DC motor, compact the volume, reduce the cotsts of production and design ,our company has devaloped a single-chip IC for sensorless burshless DC motor driver which no need connect external counter electromotive force detection circuit .

JY02A  has built-in anti-electromotive force detection circuit EMF and no need external comparator,  integrated voltage detection VOD, current detection iS, soft start time adjust S time, start torque adjust Torque, speed signal FG,enable control of EL, positive and reverse control of ZF, stepless speed regulation, etc., JY02A has overpressure and undervoltage protection, and has constant Flow drive and short circuit protection function, JY02A is mainly used for brushless dc brushless motor driven, with application convenience,The peripheral circuit is simple and low cost. The SPWM drive mode has low noise, high efficiency and stable quality  With professional technical support, JY02A is widely used in wide range of products, such as: all kinds of dc brushless fan, dc brushless water pump,Lawn mowers, scooters, balance cars, beach cars, robots, scientific instruments, fuel pumps, electric vehiclesWindow, electric chair adjustment, air conditioning fan, electric rear-view mirror adjustment, household appliances such as vacuum cleaner, air conditioning, water heating equipment, high-end children's toys, model, model, model, etc.It has also been widely used in handheld tools,Such as grinding machine, hand electric drill, engraving machine, electric screwdriver, etc​

Features:

Working voltage: 4.5 v-5.5 V.

Working temperature: -55-125 ℃

Drive mode: SPWM

Daul drive  mode : With Hall senor or sensorless

Adaptive motor: no hall motor/hall motor.

Steering control: positive/negative

Soft reversing: Yes

Speed signal: Yes

Overload protection: Yes

Current closed loop: Yes

Constant current drive: Yes

Blocking protection: Yes

starting torque regulation:Yes

Soft starting: Yes

Special technology: JYKJ full condition safety start function

Speed adjustment: linear

EAI self-adaptation function

SPWM 3 Phase Sensorless Speed Control Brushless Bldc Motor Driver IC 1


Dimensions:
SPWM 3 Phase Sensorless Speed Control Brushless Bldc Motor Driver IC 2

Typical applications
SPWM 3 Phase Sensorless Speed Control Brushless Bldc Motor Driver IC 3



Contact us for more details

We offer ODM service as customized requests
