Forward reverse AC220V DC310V 24v Pwm BLDC Fan Driver 12v

Forward reverse AC220V DC310V 24v Pwm BLDC Fan Driver 12v

  • Forward reverse	 AC220V DC310V 24v Pwm BLDC Fan Driver 12v
Forward reverse	 AC220V DC310V 24v Pwm BLDC Fan Driver 12v
Product Details:
Place of Origin: China
Model Number: OWFD-HF002
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiable
Contact Now
Detailed Product Description
Voltage Input: AC220V Power: 30W
Working Current: 0.2A Motor: Sensorless Motor
High Light:

24v pwm fan controller

,

dc motor speed controller forward reverse

,

pwm fan controller 12v



AC220V Input DC310V Brushless Bldc Fan Driver For Ceiling Fan , Sinusoidal Drive



DC310V brushless ceiling fan driver ,AC220V input,sinusoidal drive with LED light,WIFI remote control

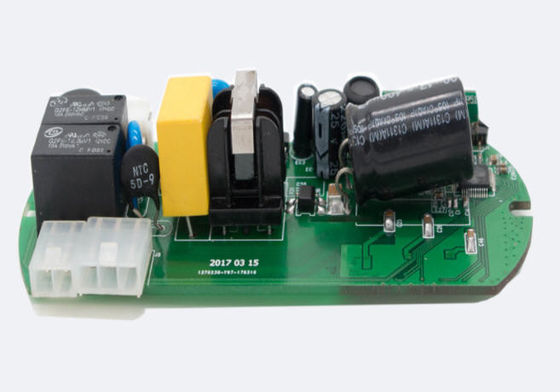

Forward reverse	 AC220V DC310V 24v Pwm BLDC Fan Driver 12v 0





Model number:OWFD-HF002

Voltage input  AC 220V
Power 30W
Efficiency 87%
PF 0.94



Fan Motor driver specification

Drive mode sinusoid / sine wave drive
Motor sensorless motor
Speed 0-500 RPM
Speed control RF/PWM/VSP
Speed feedback Yes
Forward/reverse Yes





Model selection



Model Power input Voltage Power AC range Working range Speed feedback Forward/ Led lights Size(mm)
reverse
OWFD-LF007 DC DC12V 36W / 5-28V Yes Optional Optional 84*41
OWFD-LF201 DC DC24V 36W / 18-30V Yes Optional Optional 75*55
OWFD-LF202 DC DC24V 36W / 12-32 Yes Optional Optional Dia:75
OWFD-HF002 AC AC220V 30W AC180-270V AC175-271V Yes Yes Yes 115*46
OWFD-HF005 AC AC220V 60W AC180-270V AC175-271V Yes Yes Yes 115*46
