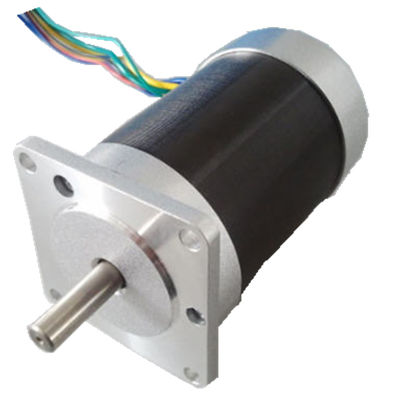

57mm High Torque Brushless Motor using for Mower, Rapid prototyping machine
57mm High Torque Brushless Motor
Features:
High power density, low noise, strong overload capacity
Application:
Food industry: Ice cream machine
Household appliance industry: Mower
Water treatment industry: Fluid pumps
Advertising industry: Rapid prototyping machine
Communication industry: Marine satellite antenna
Scientific instrument industry: Coal quality analytical instrument
Industrial automation industry: Winding machine, automatic door, etc.
◆GENERAL SPECIFICATIONS
Winding type | Delta | |
Hall effect angle | 120 degree electrical angle | |
Shaft run out | 0.025mm | |
Radial play | 0.025mm@460g | |
End play | 0.025mm@4000g | |
Max. radial force | 75N @ 20mm from the flange | |
Max. axial force | 15N | |
Insulation class | Class B | |
Dielectric strength | 500VDC for one minute | |
Insulation resistance | 100MΩMin., 500VDC |
◆ELECTRIC CONNECTION
Lead No. | Lead color | Lead gauge | Function | Description |
1 | Red | UL1007 26AWG | Vcc | Supply voltage for hall sensors |
2 | Blue | Hall A | ||
3 | Green | Hall B | ||
4 | White | Hall C | ||
5 | Black | GND | Ground for hall sensors | |
6 | Yellow | UL1007 20AWG | Phase A | |
7 | Red | Phase B | ||
8 | Black | Phase C |
◆ELECTRICAL SPECIFICATIONS
Model | OWM57BLSH01 | |||||||
Number of poles | 4 | |||||||
Number of phase | 3 | |||||||
Rated voltage (VDC) | 24 | |||||||
Rated speed (RPM) | 2300 | |||||||
Rated torque (N.m) | 0.24 | |||||||
Rated power (W) | 58 | |||||||
Peak torque (N.m) | 0.55 | |||||||
Peak current (A) | 11.5 | |||||||
Line to line resistance (ohms) | 1.5 | |||||||
Line to line inductance (mH) | 1.8 | |||||||
Torque constant (Nm/A) | 0.05 | |||||||
Back E.M.F (V/KRPM) | 5.2 | |||||||
Rotor inertia (g.cm2) | 200 | |||||||
Body length(L) (mm) | 52 | |||||||
Mass ( Kg) | 0.65 |
◆DIMENSIONS:
Related Names:
High Stability Brushless Electric Device | Electric Device without Brush for Ice Cream Device | Rapid Form Machine Used Brushless Motor Machine | Motor without Brush for Coal Analysis Equipment
