Product Details:
|
| Winding Type: | Star | Shaft Run Out: | 0.025mm |
|---|---|---|---|
| Radial Play: | 0.02mm@450g | End Play: | 0.08mm@450g |
| Max.radial Force: | 15N @ 10mm From The Flange | Max.axial Force: | 10N |
| Insulation Class: | Class B | Dielectric Strength: | 500VDC For One Minute |
| Insulation Resistance: | 100MΩMin., 500VDC | ||
| High Light: | nema 17 bldc,nema 17 brushless dc motor,nema 17 bldc motor |
||

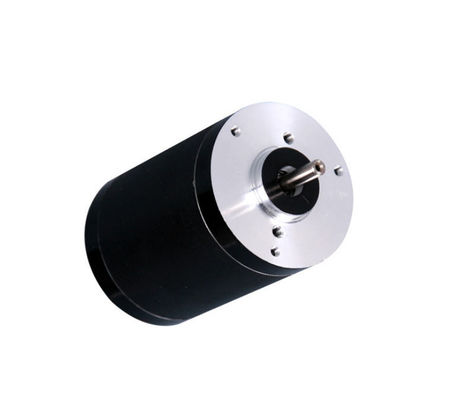

42mm Round Flange Brushless Motor,Brushless Outrunner Motors using for Engineering car air filter
42mm Round DC Brushless Motor
Features:
High power density, NEMA17 standard, fastening structure
◆GENERAL SPECIFICATIONS
| Winding type | Star | |
| Hall effect angle | 120 degree electrical angle | |
| Shaft run out | 0.025mm | |
| Radial play | 0.02mm@450g | |
| End play | 0.08mm@450g | |
| Max. radial force | 15N @ 10mm from the flange | |
| Max. axial force | 10N | |
| Insulation class | Class B | |
| Dielectric strength | 500VDC for one minute | |
| Insulation resistance | 100MΩMin., 500VDC | |
◆ELECTRIC CONNECTION
| Lead No. | Lead color | Lead gauge | Function | Description |
| 1 | Blue | UL1007 26AWG | Vcc | Supply voltage for hall sensors |
| 2 | Yellow | Hall A | ||
| 3 | Brown | Hall B | ||
| 4 | Red | Hall C | ||
| 5 | Green | GND | Ground for hall sensors | |
| 6 | Red | UL1007 22AWG | Phase U | |
| 7 | Brown | Phase V | ||
| 8 | Black | Phase W |
◆ELECTRICAL SPECIFICATIONS
| Model | OWM42RBL30 | OWM42RBL60 | OWM42RBL85 | OWM42RBL93 | ||||
| Number of poles | 8 | 8 | 8 | 8 | ||||
| Number of phase | 3 | 3 | 3 | 3 | ||||
| Rated voltage VDC | 24 | 36 | 24 | 24 | ||||
| Rated speed RPM | 3500 | 4000 | 4000 | 6300 | ||||
| Continuous stall torque mN.m | 21.6 | 96 | 180 | 138 | ||||
| Rated torque mN.m | 18 | 80 | 150 | 115 | ||||
| Rated power W | 6.5 | 32 | 62 | 76 | ||||
| Peak torque mN.m | 60 | 240 | 450 | 500 | ||||
| Peak current A | 1.5 | 5 | 7.5 | 10 | ||||
| Line to line resistance ohms | 9.8 | 1.6 | 0.71 | 0.325 | ||||
| Line to line inductance mH | 7.5 | 1.94 | 0.86 | 0.36 | ||||
| Torque constant mNm/A | 48.7 | 38.5 | 38.6 | 28.7 | ||||
| Rotor inertia g.cm2 | 24 | 48 | 84 | 94 | ||||
| Body length mm | 30 | 60 | 85 | 93 | ||||
| Mass Kg | 0.25 | 0.4 | 0.7 | 0.8 | ||||
◆DIMENSIONS:
Application:
Vehicle Industry: Engineering car air filte
Household appliance industry: Hair dryer
Industrial automation industry: Electronic components, automatic doors
Medical industry: Biochemical analyzer, hematology analyzer, centrifuge
Scientific instrument industry: Mine gas detector, coal quality analytical instruments, environment detector, precision computer embedded devices
Others: Optical correction industry, etc.
