| MOQ: | 5pcs |
| Price: | Negotiable |
| Standard Packaging: | suite for export carton |
| Delivery Period: | As confirmed |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 10000PCS/Month |
60mm Brushless DC motor can use on Automatic door, air supply equipment, automatic equipment, medical equipment

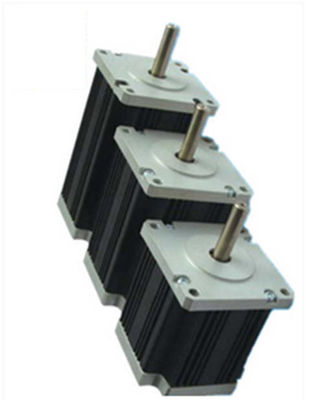

60mm Brushless DC Motor
| ◆INDICATIONS OF THE MODELS: |
| OWM60BLS01 |
| OWM: OWO Motor |
| 60: Frame size:60mm |
| BLS: Square brushless motor |
| 01: Series number |
◆GENERAL SPECIFICATIONS:
♦ Environmental conditions: -10 to +40 Centigrade degree ♦Nuber of Poles/phase: 4/3
♦Magnet material: Sintered NdFeB
♦Insulation class: B
♦We can design as the customer request.
◆ Application:
Automatic door, air supply equipment, automatic equipment, medical equipment
◆ELECTRICAL SPECIFICATIONS:
| Model | DK60BLS01 | DK60BLS02 | DK60BLS03 | DK60BLS04 | ||||
| Number of poles | 4 | 4 | 4 | 4 | ||||
| Number of phase | 3 | 3 | 3 | 3 | ||||
| Rated voltage (VDC) | 36 | 36 | 36 | 36 | ||||
| No load speed (RPM) | 5200 | 5200 | 5200 | 5200 | ||||
| Rated speed (RPM) | 4000 | 4000 | 4000 | 4000 | ||||
| Rated torque (N.m) | 0.11 | 0.22 | 0.32 | 0.44 | ||||
| Rated power (W) | 46 | 92 | 134 | 184 | ||||
| Peak torque (N.m) | 0.3 | 0.55 | 0.8 | 1.05 | ||||
| Peak current (A) | 4.5 | 7.4 | 9.5 | 14.2 | ||||
| Line to line resistance (ohms )(20°C) | 1.65 | 0.7 | 0.48 | 0.35 | ||||
| Torque constant (Nm/A) | 0.0735 | 0.0787 | 0.08 | 0.08 | ||||
| BackE.M.F (Vrms/KRPM) | 4.5 | 4.82 | 4.87 | 4.87 | ||||
| Rotor inertia (Kg.mm2) | 7.5 | 11.9 | 17.3 | 21 | ||||
| Body length(L) mm | 61.5 | 81.5 | 101.5 | 121.5 | ||||
| Mass (Kg) | 0.5 | 0.75 | 1 | 1 | ||||
◆DIMENSIONS:
Application scenarios:
|
|
