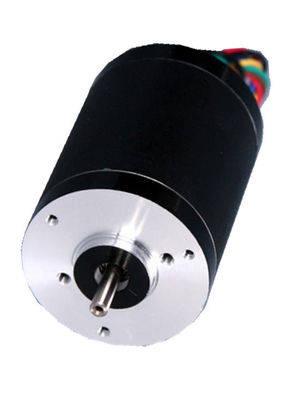

OWM 42 RBLS 01
OWM: OWO Motor
42: Motor Frame size:mm
R: Round body
Brushless motor
|
Winding type |
Delta |
|
Hall effect angle |
120 degree electrical angle |
|
Shaft run out |
0.025mm |
|
Radial play |
0.02mm@450g |
|
End play |
0.08mm@450g |
|
Max. radial force |
28N @ 20mm from the flange |
|
Max. axial force |
10N |
|
Insulation class |
Class B |
|
Dielectric strength |
500VDC for one minute |
|
Insulation resistance |
100MΩMin., 500VDC |
ELECTRICAL SPECIFICATIONS
| Model | OWM42RBL30 | OWM42RBL60 | OWM42RBL85 | OWM42RBL93 | ||||
| Number of poles | 8 | 8 | 8 | 8 | ||||
| Number of phase | 3 | 3 | 3 | 3 | ||||
| Rated voltage VDC | 24 | 36 | 24 | 24 | ||||
| Rated speed RPM | 3500 | 4000 | 4000 | 6300 | ||||
| Continuous stall torque mN.m | 21.6 | 96 | 180 | 138 | ||||
| Rated torque mN.m | 18 | 80 | 150 | 115 | ||||
| Rated power W | 6.5 | 32 | 62 | 76 | ||||
| Peak torque mN.m | 60 | 240 | 450 | 500 | ||||
| Peak current A | 1.5 | 5 | 7.5 | 10 | ||||
| Line to line resistance ohms | 9.8 | 1.6 | 0.71 | 0.325 | ||||
| Line to line inductance mH | 7.5 | 1.94 | 0.86 | 0.36 | ||||
| Torque constant mNm/A | 48.7 | 38.5 | 38.6 | 28.7 | ||||
| Rotor inertia g.cm2 | 24 | 48 | 84 | 94 | ||||
| Body length mm | 30 | 60 | 85 | 93 | ||||
| Mass Kg | 0.25 | 0.4 | 0.7 | 0.8 | ||||
Dimensions:
Application:
1. Industrial automation industry: Electronic components, automatic doods.
2. Household appliance industry: Hair dryer,mower
3. Vehicle Industry: Engineering car air filter
4. Scientific instrument industry: mine gas detector, coal quality analytical Instruments, envieronmnet detector, precisioncomputer embedded devices.
5. Medical industry: Biochemical analyzer, hematology analyzer, centrifuge
6. Others: Optical correction industry, etc.
|
|
