High Speed Brushless DC Motor With High Power Density For Vehicle Industry

High Speed Brushless DC Motor With High Power Density For Vehicle Industry

  • High Speed Brushless DC Motor With High Power Density For Vehicle Industry
  • High Speed Brushless DC Motor With High Power Density For Vehicle Industry
  • High Speed Brushless DC Motor With High Power Density For Vehicle Industry
  • High Speed Brushless DC Motor With High Power Density For Vehicle Industry
High Speed Brushless DC Motor With High Power Density For Vehicle Industry
Product Details:
Place of Origin: China
Brand Name: OWO
Certification: CE, RoHs
Model Number: 28BL
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiable
Packaging Details: suite for export carton
Delivery Time: As confirmed
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/Month
Contact Now
Detailed Product Description
Hall Effect Angle: 120 Degree Electrical Angle Shaft Run Out: 0.025mm
Radial Play: 0.02mm@450g End Play: 0.08mm@450g
Max.radial Force: 15N @ 10mm From The Flange Max.axial Force: 10N
Insulation Class: Class B Dielectric Strength: 500VDC For One Minute
High Light:

brushless direct current motor

,

high torque brushless motor

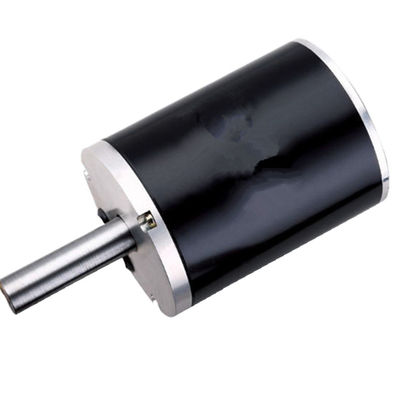

28mm Round Brushless dc motor used for the car cushion massage pump in the vehicle industry

The 28mm brushless motor features high power density and smooth speed control. It is suitable ​for high-speed application. For example, it is used for the car cushion massage pump in the vehicle industry.                                                                                                                                 High Speed Brushless DC Motor With High Power Density For Vehicle Industry 0




◆ELECTRICAL SPECIFICATIONS

Model OWM28BL26 OWM28BL38 OWM28BL77
Number of poles 4 4 4
Number of phase 3 3 3
Rated voltage VDC 15 24 24
Rated speed RPM 8000 10000 3700
Continuous stall torque mN.m 8.4 17 60
Rated torque mN.m 7 14.12 50
Rated power W 6 14.78 16
Peak torque mN.m 21 42.4 150
Peak current A 2.5 2.8 3
Line to line resistance ohms 8 4.63 4.67
Line to line inductance mH 2 3 3.5
Torque constant mNm/A 13.7 16 50
Rotor inertia g.cm2 1.23 2.12 5.98
Body length mm 26 38 77
Mass Kg 0.06 0.082 0.28



◆GENERAL SPECIFICATIONS

Winding type Star
Hall effect angle 120 degree electrical angle
Shaft run out 0.025mm
Radial play 0.02mm@450g
End play 0.08mm@450g
Max. radial force 15N @ 10mm from the flange
Max. axial force 10N
Insulation class Class B
Dielectric strength 500VDC for one minute
Insulation resistance 100MΩMin., 500VDC


◆ELECTRIC CONNECTION

Lead No. Lead color Lead gauge Function Description
1 Blue UL1007 26AWG Vcc Supply voltage for hall sensors
2 Red Hall A
3 Yellow Hall B
4 Brown Hall C
5 Green GND Ground for hall sensors
6 Red UL1007 26AWG Phase U
7 Brown Phase V
8 Black Phase W



DIMENSIONS:
High Speed Brushless DC Motor With High Power Density For Vehicle Industry 1

Related Names:
Smooth Speed Governing Motor without Brush | Brushless Motor Machine for High Speed Function | Electric Device without Brush for Car Cushion Massage Pump


Application field:

High Speed Brushless DC Motor With High Power Density For Vehicle Industry 2High Speed Brushless DC Motor With High Power Density For Vehicle Industry 3

Manufacturing shop:

High Speed Brushless DC Motor With High Power Density For Vehicle Industry 4

Certificate:

High Speed Brushless DC Motor With High Power Density For Vehicle Industry 5
