Smooth Speed Control Brushless DC Electric Motor With Good Dynamic Acceleration

Smooth Speed Control Brushless DC Electric Motor With Good Dynamic Acceleration
Smooth Speed Control Brushless DC Electric Motor With Good Dynamic Acceleration Smooth Speed Control Brushless DC Electric Motor With Good Dynamic Acceleration Smooth Speed Control Brushless DC Electric Motor With Good Dynamic Acceleration Smooth Speed Control Brushless DC Electric Motor With Good Dynamic Acceleration Smooth Speed Control Brushless DC Electric Motor With Good Dynamic Acceleration

Large Image :  Smooth Speed Control Brushless DC Electric Motor With Good Dynamic Acceleration

Product Details:
Place of Origin: China
Brand Name: OWO
Certification: CE, RoHs
Model Number: OWM33BL
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiable
Packaging Details: suite for export carton
Delivery Time: As confirmed
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/Month

Smooth Speed Control Brushless DC Electric Motor With Good Dynamic Acceleration

Description
Winding Type: Star Hall Effect Angle: 120 Degree Electrical Angle
Shaft Run Out: 0.025mm Radial Play: 0.02mm@450g
End Play: 0.08mm@450g Max.radial Force: 15N @ 10mm From The Flange
Max.axial Force: 10N Insulation Class: Class B
Dielectric Strength: 500VDC For One Minute Insulation Resistance: 100MΩMin., 500VDC
High Light:

brushless dc electric motor

,

high torque brushless motor

33mm brushless dc motor using for Medical Endoscope ,Remote Controlled Robot, Ultrasonic Apparatus

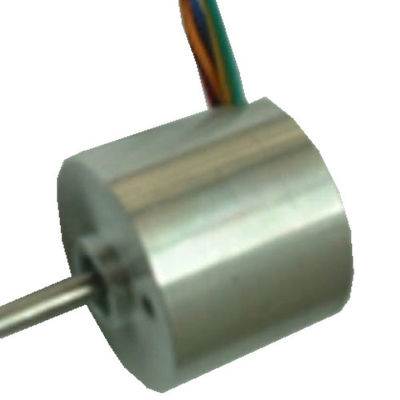

The 33mm brushless motor has features of high power density, smooth speed control and good dynamic acceleration. It is used for the remote control robot, medical endoscope, and other equipment

                                                                                                                                     Smooth Speed Control Brushless DC Electric Motor With Good Dynamic Acceleration 0






◆GENERAL SPECIFICATIONS

Winding type Star
Hall effect angle 120 degree electrical angle
Shaft run out 0.025mm
Radial play 0.02mm@450g
End play 0.08mm@450g
Max. radial force 15N @ 10mm from the flange
Max. axial force 10N
Insulation class Class B
Dielectric strength 500VDC for one minute
Insulation resistance 100MΩMin., 500VDC


◆ELECTRIC CONNECTION



Lead No. Lead color Lead gauge Function Description
1 Yellow UL1007 26AWG Vcc Supply voltage for hall sensors
2 Blue Hall A
3 Orange Hall B
4 Brown Hall C
5 White GND Ground for hall sensors
6 Green Phase U
7 Red Phase V
8 Black Phase W



◆ELECTRICAL SPECIFICATIONS





Model OWM33BL38 OWM33BL80
Number of poles 4 4
Number of phase 3 3
Rated voltage    (VDC) 24 48 24
Rated speed      (RPM) 3000 10000 7800
Continuous stall torque (mN.m) 26 48 60
Rated torque        (mN.m) 22 40 50
Rated power     (W) 7 40 40
Peak torque            (mN.m) 66 350 350
Peak current       (A) 0.64 3.5 11
Line to line resistance (ohms) 14.2 2.3 0.86
Line to line inductance (mH) 7 1.45 0.55
Torque constant      (mNm/A) 46.09 39.16 25.16
Rotor inertia               (g.cm2) 7.95 23.55 23.55
Body length             (mm) 38 80 80
Mass                    (Kg) 0.085 0.2 0.2



DIMENSIONS:
Smooth Speed Control Brushless DC Electric Motor With Good Dynamic Acceleration 1

Related Names:

Brushless Motor Machine for Medical Endoscope | Remote Controlled Robot Used Motor without Brush | Brushless Electric Device for Ultrasonic Apparatus
