Product Details:
Place of Origin: China
Brand Name: OWO
Certification: CE, RoHs
Model Number: OWM57BL(S)****-IE
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiable
Packaging Details: suite for export carton
Delivery Time: As confirmed
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/Month
Contact Now
Detailed Product Description
Hall Effect Angle: 120 Degree Electrical Angle Shaft Run Out: 0.025mm
Radial Play: 0.02mm@460g End Play: 0.08mm@400g
Max.radial Force: 75N @ 20mm From The Flange Max.axial Force: 15N
Dielectric Strength: 500VDC For One Minute Insulation Resistance: 100MΩMin., 500VDC
High Light:

brushless direct current motor

,

high torque brushless motor



57mm Brushless Motor with Internal Driver using for Coal quality analytical instrument


Features:

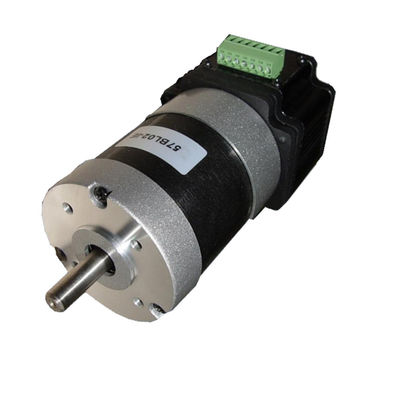

The 57mm brushless motor adopts drive integrated design. It is small in size and high in capacity. It has forward and reverse rotation control, speed governing, speed signal output, and other functions.
Application:                                                                                                                                     High Capacity Small Brushless DC Motor For Winding Machine / Peristaltic Pump 0
Industrial automation industry: Winding machine, automatic door, peristaltic pump
Scientific instrument industry: Coal quality analytical instrument
Communication industry: Navigation satellite antenna
Food industry: Ice cream machine
Household appliance industry: Mower, etc.




◆GENERAL SPECIFICATIONS

Winding type Delta
Hall effect angle 120 degree electrical angle
Shaft run out 0.025mm
Radial play 0.025mm@460g
End play 0.025mm@4000g
Max. radial force 75N @ 20mm from the flange
Max. axial force 15N
Insulation class Class B
Dielectric strength 500VDC for one minute
Insulation resistance 100MΩMin., 500VDC




◆ELECTRIC CONNECTION


     +5V    F/R    SV    PG    GND    GND   +Vp
      O        O       O      O       O         O       O
      1         2        3       4        5         6        7



7 +Vp---DC POWER INPUT +36VDC
6 GND---COMMON GROUND OF SYSTEM
5 GND---COMMON GROUND OF SYSTEM
4 PG---SPEED PULSE OUTPUT(TTL),12 PULSE/REV
3 SV---SPEED VOLTAGE 0—5VDC
2 F/R---ROTATING DIRECTION,Hi=CCW
1 +5V---+5V VOLTAGE OUTPUT
NOTE: SPEED CLOSE LOOP CONTROL:5000RPM MAX. AT SV=5VDC


◆ELECTRICAL SPECIFICATIONS





Model OWM57BL(S)01-IE OWM57BL(S)02-IE OWM57BL(S)03-IE OWM57BL(S)04-IE
Number of poles 4 4 4 4
Number of phase 3 3 3 3
Rated voltage VDC 36 36 36 36
Rated speed RPM 4000 4000 4000 4000
Rated torque N.m 0.11 0.22 0.32 0.43
Rated power W 46 92 133 180
Line to line resistance ohms 1.5 0.7 0.45 0.35
Line to line inductance mH 4.5 2.1 1.4 1
Torque constant Nm/A 0.063 0.063 0.063 0.063
BackE.M.F Vrms/KRPM 6.6 6.6 6.6 6.6
Rotor inertia g.cm2 75 119 173 230
Body length(L) mm 78 98 118 138



DIMENSIONS:
