Product Details:
|
| Rated Voltage: | 24V DC | Rated Current: | 2.5A |
|---|---|---|---|
| Motor Speed: | 18000 RPM | Driving Motor: | 3 Phase Brushless DC Motor |
| Bearing: | NMB Ball Bearing | Air Pressure: | 240pa |
| Net Weight: | 400g | IP Grade: | IP 54 |
| Service Life: | 6000 Hours | ||
| High Light: | 40x20mm brushless dc cooling blower fan,brushless dc cooling blower fan 24 v,dc brushless blower fan 24 v |
||

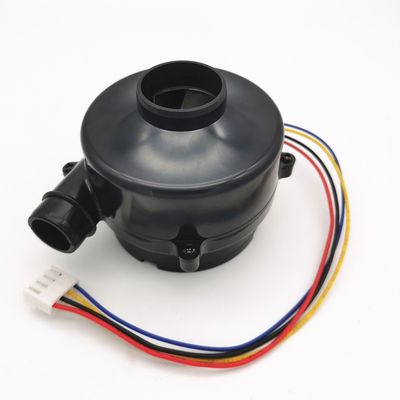

High speed 24VDC brushless air blower for hand dryer,cooling equipment,blower fan,with PWM control BLDC blower fan
OWB-4011 series DC brushless air blower
1:Brushless DC Air Blower Features:
1: High speed, specialized high-speed ball bearing(NMB) offering long service life and lower noise
2:Die-casting aluminum motor base, high efficient heat dispersion,
3: High efficiency, much more efficient than brushed motor blower
4: High reliability, specialized controller make the working more reliable
5: Built-in controller, PWM speed regulation, positive inversion, PG signal feedback, intelligent controlling
2:Brushless DC Air Blower Applications:
1: Buffer air cushion
2: Intelligent closestool
3: Electric-Drive phlegm-Sucker
4: Central ventilation system
5:Air purifier
6:Hand dryer
7: Air bubble machine
8: Ventilating device
9: Vacuum cleaner
10: breathing machine
11: air pump
12: Cooling equipment
3: Products Parameters
| Model | OWB-4011-24 | |
| Rated Voltage | 24VDC (9-28V) | |
| Rated current(open) | 2.5A | |
| Air flow(open) | 9 M3/H | |
| Motor Speed(open) | 18000 RPM | |
| Rated current(closed) | 2.2A | |
| Air pressure(closed) | 240 Pa | |
| Motor Speed(closed) | 20500 RPM | |
| Motor pole | 4 | |
| Wind speed | 15m/s | |
| Noise | 70 dBA | |
| Ball Bearing | NMB High-speed ball bearing | |
| Driving motor | 3 phase brushless DC motor | |
| Hall sensor | Sensorless | |
| RPM-Pulse | 1 Hz=30rpm | |
| Winding type | Delta | |
| Winding withstand Voltage | 500VDC (1 minute ) | |
| Insulation Class | Class F | |
| Blower weight | 400 g | |
| IP grade | IP54 | |
| Operation temperature | -20℃~ 50℃ | |
| Service life (under 40℃) | 6000 hours | |
4: Products performance
OWB-0411 brushless DC blower Performance curves
5: Overall dimensions
6: Wiring diagram
| Pin 1 | Red | DC+24V |
| Pin 2 | Black | GND |
| Pin 3 | Blue | FG speed pulse output ( 2 pulse/round) |
| Pin 4 | Yellow | PWM (5V 1KHz, 6%-100% duty cycle) |
7: Attentions
1: Do not working under the max air pressure, the air flow is too small at max air pressure, and it's not safe for using.
2: Add a filter attach to the intake makes the blower bearing longer service life.
3: The correct rotation direction is CCW
4: Do not use the blower in High temperature ,high humidity, high magnetic fields
5: Please use suitable power supply for the blower.
