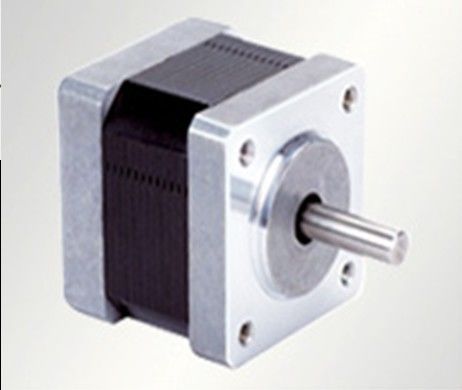

2 Phase Waterproof Heavy Duty Powerful 35mm Stepper Motor

2 Phase Waterproof Heavy Duty Powerful 35mm Stepper Motor

  • 2 Phase Waterproof Heavy Duty Powerful 35mm Stepper Motor
2 Phase Waterproof Heavy Duty Powerful 35mm Stepper Motor
Product Details:
Place of Origin: CHINA
Brand Name: OWO
Certification: CCC. ROHS.CE
Model Number: 35HS2804A4,35HS2808A4,35HS2804A6,35HS3404A4,35HS3408A4,35HS3504A6,35HS5215A4E
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: Negotiable
Packaging Details: SUITE FOR EXPORT
Delivery Time: AS CONFIRMED
Payment Terms: Western Union, T/T,
Supply Ability: 10000PCS
Contact Now
Detailed Product Description
SIZE: 35MM Length: 28mm,34mm,50mm
Lead Wire: 4 Or 6 Step Angle: 1.8 Degree
Temperature Rise: 80℃ Max Dielectric Strength: 500V AC 1minute
High Light:

powerful stepper motor

,

heavy duty stepper motor

,

35mm stepper motor

1.8 Degree size35mm 2-phase high torque Hybrid stepper motor



●General Specification:

Item Specifications
Step Angle 1.8°



Step Angle Accuracy

±5%



Resistance Accuracy

±10%
Inductance Accuracy ±20%
Temperature Rise 80℃ Max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100MΩMin.500VDC
Dielectric Strength 500V AC 1minute



●Electrical Specifications:

Model No.

Step angle

(°)

Current

(A)

Resistance

(Ω)

Inductance

/Phase

(mH)

Holding Torque

(N.cm)

Detent Torque

(N.cm)

Rotor Inertia

(g.cm2)

Motor Length

(mm)

Lead Wire

(No.)

Weight

(g)

35HS2804A4 1.8 0.46 20 14 12 0.8 11 28 4 120
35HS2808A4 1.8 0.8 5 5 12 0.8 11 28 4 120
35HS2804A6 1.8 0.4 30 11 9 0.8 11 28 6 120
35HS3404A4 1.8 0.42 25 32 18 1 13 34 4 160
35HS3408A4 1.8 0.8 6.5 9.8 18 1 13 34 4 160
35HS3404A6 1.8 0.4 30 22 12 1 13 34 6 160
35HS5215A4E 1.8 1.5 3.5 8.6 22 1.6 26 50 4 230
*We can manufacture products according to customer’s requirements



  • Mechanical Dimensions: ● Wiring Diagram:
  • 2 Phase Waterproof Heavy Duty Powerful 35mm Stepper Motor 0
