Self-adapting 15-60VDC 500W BLDC Motor Driver for Industrial Automation
  • name
  • name
  • name
  • name
  • name
  • name

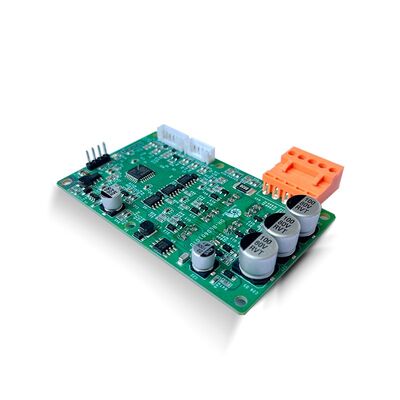

Self-adapting 15-60VDC 500W BLDC Motor Driver for Industrial Automation

MOQ: 1
Price: $15.90-17.90
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
Bextremeshell
Model Number
DH-BLD6010TD
Type:
Industrial Control PCBA
Supplier Type:
General
Copper Thickness:
1 Oz
Functional Application:
Industrial Control
RAM:
No
Application:
Bldc Motor, Drive Hall Sendoe/ Sensorless BLDC Motor
Working Voltage:
15-60VDC
Max Current:
20A
Supplier:
Changzhou Bextreme Shell Motor
Function:
Speed Open-loop/closed-loop Control Mode
Speed Signal Output:
Yes
Over-current:
Yes
Hardware Self-test:
Yes
Protections:
Under-voltage, Locked-rotor, Over-heating
Short Circuit, Over-voltage:
Yes
Highlight:

15-60V BLDC motor driver

,

500W brushless motor controller

,

industrial automation motor driver

Product Description

DH-BLD6010TD Self-adapting Motor Driver Working Voltage 15-60VDC Can Be Configurated By Serial Port.

BLDC Motor Driver
DH-BLD6010TD User Manual V1.0
15-60VDC, Max:20A



Self-adapting 15-60VDC 500W BLDC Motor Driver for Industrial Automation 0

Features



Hall sensored or Sensorless working mode, support Hall and phases of motor automatic matched through self-learning function;



Support speed open-loop/closed-loop control mode;



Acceleration and deceleration are adjustable;



Speed regulation mode: 0-5V voltage/PWM duty cycle/Serial communication port(UART);



Enable control signal, direction signal input, speed feedback FG output;



Hardware self-test, over-current, short circuit, over-voltage, under-voltage, locked-rotor, over-temperature and other protections Current clamping function;





Working mode

The DH-BLD6010TD motor driver can work in two working modes, Hall sensored or Sensorless, during the driver power-on, the driver detects the Hall signal, if the Hall signal is not connected, or the Hall signal is faulty, the driver will work in the Hall no mode of operation. Otherwise, the drive works in Hall mode of operation.



When the driver is enabled, when the control signal is greater than the starting duty cycle (configured through the serial port), the driver starts to start, and when the control signal is lower than the starting duty cycle, the driver is in standby mode and the motor stops.
There are a total of 6 combination sequences for Hall signals Ha, Hb, and Hc, and one of them is the correct phase sequence. The correct phase sequence satisfies the following conditions:
(1) the forward and reverse rotational speed and power are approximately equal,
(2) the output power and current are normal during the gradual increase of the command to the maximum. Note: During the testing of the phase sequence, the power supply needs to have a current limit measure to avoid accidents.
This driver supports Hall signal sequence self-learning function, connect the power cable, Hall signal and control signal, serial port sends AA 01 1E 01 00 00 00 CC instructions, the driver performs Hall sensor signal sequence self-learning, LED flashes 13 times and turns off for 2 seconds to indicate that the learning Xi is completed, and the control instruction is zero, and it can work normally.
In Sensorless mode, the phase lines of the U, V, and W motors can be connected arbitrarily, and two of the phases can be exchanged arbitrarily, and the motor can be reversed, and the external F/R signal can also make the motor reverse. In sensorless mode, the F/R signal can be configured via the serial port to take effect immediately or when the motor is stopped.
Serial port configuration for speed open-loop/closed-loop mode;



Port description



Self-adapting 15-60VDC 500W BLDC Motor Driver for Industrial Automation 2Self-adapting 15-60VDC 500W BLDC Motor Driver for Industrial Automation 4



Wiring diagram

Self-adapting 15-60VDC 500W BLDC Motor Driver for Industrial Automation 6

Installation dimensions



Self-adapting 15-60VDC 500W BLDC Motor Driver for Industrial Automation 8

Tags:

Hybrid Servo Stepper Motor stepper encoder,

hss60,

hss60 2 phase stepper motor

Recommended Products
36-70V BLDC Motor Driver with 0-5V Speed Control and Square Wave for Industrial Applications

36-70V BLDC Motor Driver with 0-5V Speed Control and Square Wave for Industrial Applications

Contact Now
24V 350W 15A BLDC Motor Driver for Industrial Use with Square Wave Control and Over-Current Protection

24V 350W 15A BLDC Motor Driver for Industrial Use with Square Wave Control and Over-Current Protection

Contact Now
24V 400W*2 BLDC Motor Driver with 12-36VDC Input for Dual Brushless Motor Control

24V 400W*2 BLDC Motor Driver with 12-36VDC Input for Dual Brushless Motor Control

Contact Now
DH-BLD6010TD 15-60VDC Input Max 500W Multi-Functional BLDC Motor Driver with UART Port PCBA

DH-BLD6010TD 15-60VDC Input Max 500W Multi-Functional BLDC Motor Driver with UART Port PCBA

Contact Now
JYQD-YL02D 540W*2 Dual Motor Driver 12-36VDC with 0-5V Speed Regulation for BLDC Motors

JYQD-YL02D 540W*2 Dual Motor Driver 12-36VDC with 0-5V Speed Regulation for BLDC Motors

Contact Now
90-265V DC Input 100W Rated Power 250W Max Power BLDC Motor Controller Brushless DC Motor Driver

90-265V DC Input 100W Rated Power 250W Max Power BLDC Motor Controller Brushless DC Motor Driver

Contact Now
12-36VDC Input 15A Maximum Current 350W Rated Power BLDC Motor Driver Board for Hall Sensor Motor

12-36VDC Input 15A Maximum Current 350W Rated Power BLDC Motor Driver Board for Hall Sensor Motor

Contact Now
Products
PRODUCTS DETAILS
Products

BLDC Driver Board

BLDC Motor Driver IC

3 Phase BLDC Motor Driver

Automotive Water Pump

BLDC Centrifugal Fan

BLDC Water Pump

Brushless DC Motor

Electric Linear Actuator

Deuterium Lamp Power Supply

Electric Coolant Pump

Electric Motor Water Pump

Immersion Cooling Pump

BLDC Motor Driver

Customized Pumps
Self-adapting 15-60VDC 500W BLDC Motor Driver for Industrial Automation
  • name
  • name
  • name
  • name
  • name
  • name
Self-adapting 15-60VDC 500W BLDC Motor Driver for Industrial Automation
MOQ: 1
Price: $15.90-17.90
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
Bextremeshell
Model Number
DH-BLD6010TD
Type:
Industrial Control PCBA
Supplier Type:
General
Copper Thickness:
1 Oz
Functional Application:
Industrial Control
RAM:
No
Application:
Bldc Motor, Drive Hall Sendoe/ Sensorless BLDC Motor
Working Voltage:
15-60VDC
Max Current:
20A
Supplier:
Changzhou Bextreme Shell Motor
Function:
Speed Open-loop/closed-loop Control Mode
Speed Signal Output:
Yes
Over-current:
Yes
Hardware Self-test:
Yes
Protections:
Under-voltage, Locked-rotor, Over-heating
Short Circuit, Over-voltage:
Yes
Minimum Order Quantity:
1
Price:
$15.90-17.90
Highlight

15-60V BLDC motor driver

,

500W brushless motor controller

,

industrial automation motor driver

Product Description

DH-BLD6010TD Self-adapting Motor Driver Working Voltage 15-60VDC Can Be Configurated By Serial Port.

BLDC Motor Driver
DH-BLD6010TD User Manual V1.0
15-60VDC, Max:20A



Self-adapting 15-60VDC 500W BLDC Motor Driver for Industrial Automation 0

Features



Hall sensored or Sensorless working mode, support Hall and phases of motor automatic matched through self-learning function;



Support speed open-loop/closed-loop control mode;



Acceleration and deceleration are adjustable;



Speed regulation mode: 0-5V voltage/PWM duty cycle/Serial communication port(UART);



Enable control signal, direction signal input, speed feedback FG output;



Hardware self-test, over-current, short circuit, over-voltage, under-voltage, locked-rotor, over-temperature and other protections Current clamping function;





Working mode

The DH-BLD6010TD motor driver can work in two working modes, Hall sensored or Sensorless, during the driver power-on, the driver detects the Hall signal, if the Hall signal is not connected, or the Hall signal is faulty, the driver will work in the Hall no mode of operation. Otherwise, the drive works in Hall mode of operation.



When the driver is enabled, when the control signal is greater than the starting duty cycle (configured through the serial port), the driver starts to start, and when the control signal is lower than the starting duty cycle, the driver is in standby mode and the motor stops.
There are a total of 6 combination sequences for Hall signals Ha, Hb, and Hc, and one of them is the correct phase sequence. The correct phase sequence satisfies the following conditions:
(1) the forward and reverse rotational speed and power are approximately equal,
(2) the output power and current are normal during the gradual increase of the command to the maximum. Note: During the testing of the phase sequence, the power supply needs to have a current limit measure to avoid accidents.
This driver supports Hall signal sequence self-learning function, connect the power cable, Hall signal and control signal, serial port sends AA 01 1E 01 00 00 00 CC instructions, the driver performs Hall sensor signal sequence self-learning, LED flashes 13 times and turns off for 2 seconds to indicate that the learning Xi is completed, and the control instruction is zero, and it can work normally.
In Sensorless mode, the phase lines of the U, V, and W motors can be connected arbitrarily, and two of the phases can be exchanged arbitrarily, and the motor can be reversed, and the external F/R signal can also make the motor reverse. In sensorless mode, the F/R signal can be configured via the serial port to take effect immediately or when the motor is stopped.
Serial port configuration for speed open-loop/closed-loop mode;



Port description



Self-adapting 15-60VDC 500W BLDC Motor Driver for Industrial Automation 2Self-adapting 15-60VDC 500W BLDC Motor Driver for Industrial Automation 4



Wiring diagram

Self-adapting 15-60VDC 500W BLDC Motor Driver for Industrial Automation 6

Installation dimensions



Self-adapting 15-60VDC 500W BLDC Motor Driver for Industrial Automation 8

Tags:

Hybrid Servo Stepper Motor stepper encoder,

hss60,

hss60 2 phase stepper motor
