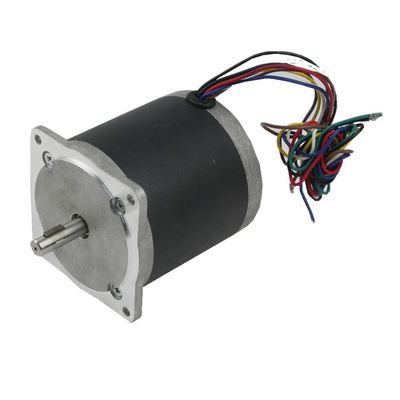

86mm 1.8 Degree Two Phase Hybrid Stepper Motor 24vdc

86mm 1.8 Degree Two Phase Hybrid Stepper Motor 24vdc

  • 86mm 1.8 Degree Two Phase Hybrid Stepper Motor 24vdc
  • 86mm 1.8 Degree Two Phase Hybrid Stepper Motor 24vdc
86mm 1.8 Degree Two Phase Hybrid Stepper Motor 24vdc
Product Details:
Place of Origin: CHINA
Brand Name: OWO
Certification: CCC. ROHS.CE
Model Number: 86HY6340A8,86HY9240A8, 86HY12240A8,...
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: Negotiable
Packaging Details: SUITE FOR EXPORT
Delivery Time: AS CONFIRMED
Payment Terms: Western Union, T/T,
Supply Ability: 10000PCS
Contact Now
Detailed Product Description
SIZE: 86MM Length: 63mm,92mm,64mm,122mm
Lead Wire: 8 Step Angle: 1.8 Degree
Weight: 1.6KG,2.6KG,3.8KG Holding Torque: 1.8-4.5N.cm
High Light:

two phase Hybrid Stepper Motor

,

1.8 degree stepper motor

,

stepper motor 24vdc

1.8Degree size 86mm Round Body 2-phase high torque Hybrid stepper motor

●General Specification:

Item Specifications
Step Angle 1.8°



Step Angle Accuracy

±5%
Resistance Accuracy ±10%
Inductance Accuracy ±20%



Temperature Rise

80℃ Max



Ambient Temperature

-20℃~+50℃
Insulation Resistance 100MΩMin.500VDC
Dielectric Strength 500V AC 1minute



●Electrical Specifications:

Model No.

Step angle

(°)

Current

(A)

Resistance

(Ω)

Inductance

/Phase

(mH)

Holding Torque

(N.cm)

Detent Torque

(N.cm)

Rotor Inertia

(g.cm2)

Motor Length

(mm)

Lead Wire

(No.)

Weight

(Kg)

86HY6340A8 1.8 4 0.68 2 1.8 4.5 0.64 63 8 1.6
86HY6350A8 1.8 5 0.45 1.5 1.8 4.5 0.64 63 8 1.6
86HY6327A8 1.8 2.7 1.2 4.5 1.8 4.5 0.64 63 8 1.6
86HY6321A8 1.8 2.1 1.9 7.2 1.8 4.5 0.64 63 8 1.6
86HY9240A8 1.8 4 0.89 3.8 3.2 6.5 1.3 92 8 2.6
86HY9250A8 1.8 5 0.58 2.8 3.2 6.5 1.3 92 8 2.6
86HY9227A8 1.8 2.7 1,7 9 3.2 6.5 1.3 92 8 2.6
86HY9221A8 1.8 2.1 2.7 15 3.2 6.5 1.3 92 8 2.6
86HY12240A8 1.8 4 1.1 5.6 4.5 10.5 1.9 122 8 3.8
86HY12250A8 1.8 5 0.82 3.6 4.5 10.5 1.9 122 8 3.8
86HY12227A8 1.8 2.7 2.5 12.5 4.5 10.5 1.9 122 8 3.8
*We can manufacture products according to customer’s requirements
