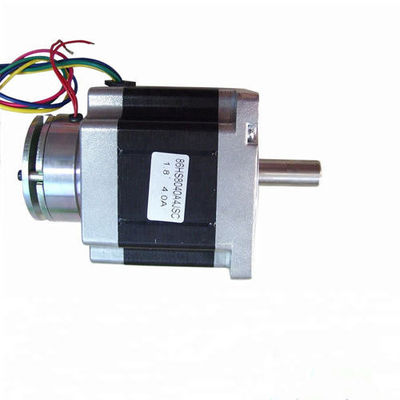

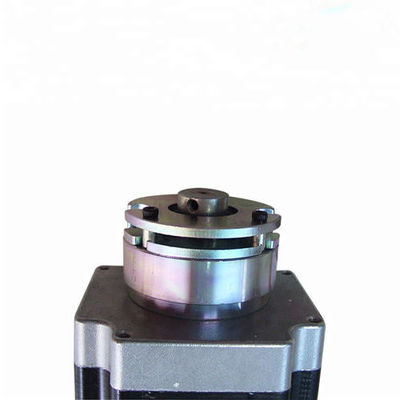

80 Mm Length 4A High Torque Nema 34 Stepper Motor Keyway Type With Brake

80 Mm Length 4A High Torque Nema 34 Stepper Motor Keyway Type With Brake

  • 80 Mm Length 4A High Torque Nema 34 Stepper Motor Keyway Type With Brake
  • 80 Mm Length 4A High Torque Nema 34 Stepper Motor Keyway Type With Brake
  • 80 Mm Length 4A High Torque Nema 34 Stepper Motor Keyway Type With Brake
  • 80 Mm Length 4A High Torque Nema 34 Stepper Motor Keyway Type With Brake
  • 80 Mm Length 4A High Torque Nema 34 Stepper Motor Keyway Type With Brake
80 Mm Length 4A High Torque Nema 34 Stepper Motor Keyway Type With Brake
Product Details:
Place of Origin: CHINA
Brand Name: OWO
Certification: CE, ROHS,
Model Number: OWM86HS8040B4JSC
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiable
Packaging Details: suit for export
Delivery Time: as confirmed
Payment Terms: T/T, paypal,, Western Union
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Step Angle: 1.8° Type: Hybrid
Phase: 2 Holding Torque: 4N.m
Current/phase: 4A Detent Torque: 6.5N.cm
Lead Wire No.: 4 Phase Inductance: 5.6mH
Braking Force: 2N.m Phase Voltage: 3V
Rotor Inertia: 1050g.cm2 Phase Resistance: 0.75
High Light:

stepper motor OWM86HS8040B4JSC

,

OWM86HS8040B4JSC motor

,

OWM86HS8040B4JSC





Electrical Specification:



Name nema 34 stepper motor with brake
Model Nema34
Detent Torque 24.5N.cm
Applied driver MA860H
Motor Weight 2.5kg
Motor length 80mm
Braking thickness 33-35mm
Rotor Inertia 2.5g.cm2
Phase Resistance 0.5
Phase Inductance 5.6mH
Product Keywords nema 34 stepper motor with brake,stepper motor keyway type,stepper motor with brake

Quality assurance:
1.All stepper motor have CE and ROHS certification
2.All motors are tested by a toasting machine for 72 hours
3.All the motors will be shipped after testing



Motor drawing:

80 Mm Length 4A High Torque Nema 34 Stepper Motor Keyway Type With Brake 0
