Product Details:
|
| Temperature Rise: | 40K | Environment Temperature: | -20℃~+80℃ |
|---|---|---|---|
| Insulation Resistance: | 100MΩ Min 500VDC | Insulation Voltage: | 500VAC For 1Min |
| Insulation Level: | E | Rated Voltage: | 12V |
| Effiency: | 80% | Weight: | 45g |
| High Light: | High Rpm BLDC Gear Motor,OW16ZYJ dc motor,OW16ZYJ gear motor |
||
Features:

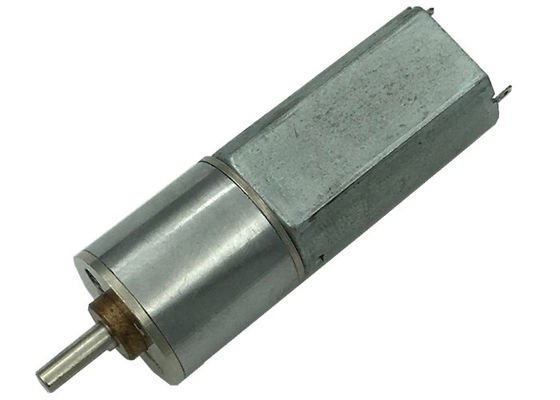

OW16ZYJ DC gear motor has the characteristics of simple structure, low noise, constant speed and long service life
Gernoral Specification:
Temperature rising: 40K
Environment temperature: -20℃~+80℃
Insulation resistance: 100MΩ min 500VDC
Insulation voltage: 500VAC for 1min
Insulation level: E
Weight: 45g
| Model specification | OW16ZYJ | ||||
| Use voltage | DC/V | 3V-24 | |||
| Reduction ratio | 1/50 | 1/100 | 1/200 | 1/360 | |
| No-load speed | rpm | 160 | 80 | 40 | 22 |
| No-load current | mA | 50 | 50 | 50 | 50 |
| Output torque | g.cm | 200 | 400 | 800 | 1500 |
| Load speed | rpm | 135 | 65 | 29 | 17 |
| Load current | mA | 100 | 100 | 100 | 100 |
| Power | W | 1-3 | |||
| Running direction | Bidirectional reversible | ||||
ELECTRICAL SPECIFICATIONS:
| Model | Rated voltage | motor speed | Reduction Ratio | Power | No-load speed | No-load current | Rated speed | Rated current | Rated Load torque | Stalling Torque | Stalling current |
| V DC | rpm | 1:xxx | W | rpm | mA | rpm | mA | Kg.cm | Kg.cm | mA | |
| OW16ZYJ-75A | 3 | 7500 | 100 | 2.2 | 75 | 80 | 60 | 150 | 1.8 | 3 | 600 |
| OW16ZYJ-100A | 6 | 15000 | 150 | 2.2 | 100 | 80 | 130 | 160 | 2 | 3.5 | 600 |
| OW16ZYJ-500A | 9 | 15000 | 30 | 2.2 | 500 | 80 | 400 | 200 | 1 | 2 | 600 |
| Normal Reduction ratio:1/10 1/20 1/30 1/50 1/75 1/100 1/150 1/200 1/300 | |||||||||||
| Above are normal products, we can make as the customer's request. | |||||||||||
Drawing :
Applications:
The motor widly apply to Advertising exhibition equipment, medical equipment, stabilizing voltage power supply, towel machine, photographic equipment
