Product Details:
|
| Temperature Rise: | 40K | Environment Temperature: | -20℃~+80℃ |
|---|---|---|---|
| Insulation Resistance: | 100MΩ Min 500VDC | Rated Voltage: | 6~24v |
| Rated Power: | 0.06~9.6w | Rated Speed: | 3000~10000rpm |
| Weight: | 50g | ||
| High Light: | Electric OW24ZYJ,6v dc motor gearbox,Brushless OW24ZYJ |
||
Features:

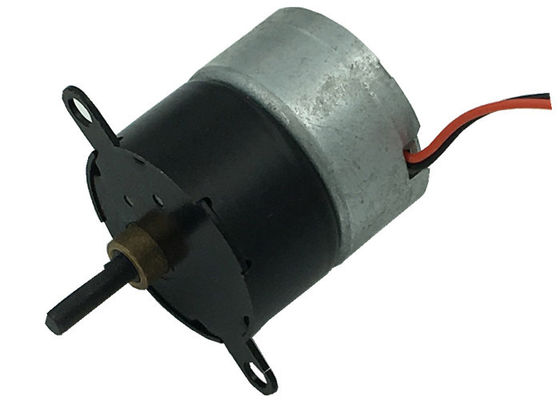

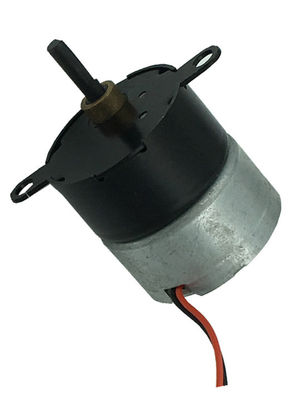

OW24ZYJ DC gear motor has the characteristics of simple structure, low noise, constant speed and long service life
Gernoral Specification:
Temperature rising: 40K
Environment temperature: -20℃~+80℃
Insulation resistance: 100MΩ min 500VDC
Insulation voltage: 500VAC for 1min
Insulation level: E
| Model specification | OW24ZYJ | |||||
| Use voltage | DC/V | 1.5V-24 | ||||
| Reduction ratio | 1/16 | 1/25 | 1/85 | 1/200 | 1/466 | |
| No-load speed | rpm | 500 | 320 | 92 | 40 | 17 |
| No-load current | mA | 45 | 45 | 45 | 45 | 45 |
| Output torque | g.cm | 70 | 100 | 300 | 600 | 1500 |
| Load speed | rpm | 450 | 290 | 80 | 32 | 14 |
| Load current | mA | 100 | 100 | 100 | 100 | 100 |
| Power | W | 2-3.5 | ||||
| Running direction | Bidirectional reversible | |||||
ELECTRICAL SPECIFICATIONS:
| Model | Rated voltage | motor speed | Gear ratio | power | No-load speed | No-load current | Rated speed | Rated current | Rated load | stall torque | stall current |
| V DC | rpm | 1:xxx | W | rpm | mA | rpm | mA | Kg.cm | Kg.cm | mA | |
| OW24ZYJ-25A | 5 | 5000 | 200 | 2 | 25 | 30 | 20 | 100 | 1 | 3 | 500 |
| OW24ZYJ-60A | 9 | 5000 | 80 | 2 | 60 | 30 | 50 | 100 | 0.5 | 2 | 600 |
| OW24ZYJ-17A | 12 | 8000 | 466 | 2 | 17 | 35 | 14 | 120 | 2 | 5 | 600 |
| Normal gear ratio:1/16 1/24 1/80 1/200 1/466 1/615 | |||||||||||
| Above are normal products, we can make as the customer's request. | |||||||||||
Drawing :
