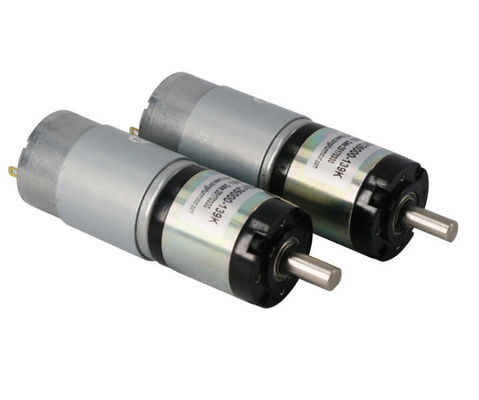

Micro Moto 12vdc 36mm 17rpm Bldc Planetary Gear Motor

Micro Moto 12vdc 36mm 17rpm Bldc Planetary Gear Motor

  • Micro Moto 12vdc 36mm 17rpm Bldc Planetary Gear Motor
  • Micro Moto 12vdc 36mm 17rpm Bldc Planetary Gear Motor
  • Micro Moto 12vdc 36mm 17rpm Bldc Planetary Gear Motor
Micro Moto 12vdc 36mm 17rpm Bldc Planetary Gear Motor
Product Details:
Place of Origin: China
Brand Name: OWO
Certification: CE,ROSH
Model Number: OWM-36RP555
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable
Delivery Time: 5-8days
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Torque:: 28Kgf.cm Voltage:: 12V
Speed(RPM):: 17rpm Power:: 5W
High Light:

micro dc geared motor

,

Planetary Bldc Gear Motor

,

micro geared motor

36mm 12V and24 V 17 RPM Planetary Gear Micro DC Motor

Micro Moto 12vdc 36mm 17rpm Bldc Planetary Gear Motor 0

Drawing

Micro Moto 12vdc 36mm 17rpm Bldc Planetary Gear Motor 1

Remark: find the length of gearbox "L" in below Technical Data of Gearbox.



Specifications

Specifications below are for reference only. Contact us for more.



Model Number Rated Volt. No Load At Max Efficiency Stall
Speed Current Speed Current Torque Power Current Torque
rpm mA rpm mA Kgf.cm W mA Kgf.cm
OWM-36RP5550128000-14K 12V 571 ≤900 465 ≤3500 4 19.1 ≥11550 ≥19
OWM-36RP5550126000-5.2K 12V 1153 ≤650 960 ≤3000 1.2 11.8 ≥10620 ≥6.3
OWM-36RP5550126000-27K 12V 223 ≤400 175 ≤1600 4.2 7.5 ≥5350 ≥20
OWM-36RP5550126000-51K 12V 117 ≤680 85 ≤2680 13 11.3 ≥8350 ≥60
OWM-36RP5550126000-71K 12V 84 ≤500 70 ≤2400 14 10.1 ≥8380 ≥71
OWM-36RP5550126000-100K 12V 60 ≤450 48 ≤2000 16 7.9 ≥6300 ≥78
OWM-36RP5550126000-139K 12V 43 ≤400 36 ≤1500 13 4.8 ≥4400 ≥73
OWM-36RP5550126000-189K 12V 31 ≤550 24 ≤2700 28 6.9 ≥6800 ≥130
OWM-36RP5550126000-721K 12V 8 ≤400 6 ≤3200 160 9.9 ≥9000 ≥630
OWM-36RP5550124500-27K 12V 167 ≤550 147 ≤2000 6 9.1 ≥6500 ≥30
OWM-36RP5550124500-51K 12V 88 ≤500 80 ≤2000 11.6 9.5 ≥7000 ≥59
OWM-36RP5550124500-264K 12V 17 ≤400 12 ≤1500 28 3.4 ≥2800 ≥104
OWM-36RP5550124500-515K 12V 8.7 ≤330 7.7 ≤1300 45 3.6 ≥2540 ≥164
OWM-36RP5550123000-100K 12V 30 ≤300 22.8 ≤1000 13 3.0 ≥2000 ≥50
OWM-36RP5550123000-1367K 12V 2.2 ≤230 / / / / / /
OWM-36RP5550246000-3.7K 24V 1621 ≤500 1216 ≤2000 1.5 18.7 ≥8000 ≥7.5
OWM36RP5550246000-5.2K 24V 1153 ≤400 1016 ≤1600 1.25 13.0 ≥5380 ≥8
OWM-36RP5550246000-189K 24V 31 ≤360 26 ≤1800 41 10.9 ≥4730 ≥204
OWM-36RP5550246000-1367K 24V 4.3 ≤450 3.2 ≤2000 250 8.2 ≥6500 ≥1200
OWM-36RP5550244500-71K 24V 63 ≤220 48 ≤1100 10 4.9 ≥3700 ≥50
OWM-36RP5550244500-139K 24V 32 ≤380 26 ≤2000 35 9.3 ≥6800 ≥170
OWM-36RP5550244500-264K 24V 17 ≤220 14 ≤1000 43 6.2 ≥2700 ≥221
OWM-36RP5550244500-369K 24V 12 ≤250 9 ≤850 70 6.5 ≥2500 ≥280
OWM-36RP5550243000-100K 24V 30 ≤150 22 ≤550 12 2.7 ≥1180 ≥55
Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in





What a Model Number Tells You?

We follow some rules to create each model number. A model number would tell you a lot of useful messages. Here is a sample.

Micro Moto 12vdc 36mm 17rpm Bldc Planetary Gear Motor 2



So here we can learn that it is a 37mm Round Spur gear motor, 12V driving motor #555, no load input speed6000rpm and reduction ratio 100:1. Hey, what about output speed? You need to do a little calculation. Input speed 6000rpm ÷ reduction ratio 100 = 60rpm.



Technical Data of Gearbox

Reduction Stage 1 2 3 4 5
Reduction Ratio 3.7K, 5.2K 14K, 19K, 27K 51K, 71K, 100K, 139K 189K, 264K, 369K, 515K, 721K 977K, 1367K, 1910K, 2671K, 3736K
Length of Gearbox "L" mm 26.5 34.5 42.5 50.5 58.5
Gearbox Efficiency 90% 81% 73% 65% 59%



Technical Data of Motor

Motor model Rated Volt. No load Load Stall
Current Speed Current Speed Torque power Torque Current
V mA rpm mA rpm gf.cm W gf.cm mA
OWM-5550066000 6 ≤858 6000 ≤2250 4500 300 13.8 ≥1080 ≥10000
OWM-5550123000 12 ≤171 3000 ≤561 2400 126 3.16 ≥560 ≥2390
OWM-5550126000 12 ≤350 6000 ≤2300 4500 280 13.19 ≥1000 ≥10230
OWM-5550128500 12 ≤638 8500 ≤2800 6450 300 20.3 ≥1120 ≥11900
OWM5550243000 24 ≤120 3000 ≤336 2400 198 4.98 ≥990 ≥1430
OWM-5550244500 24 ≤174 4500 ≤620 3600 309 11.65 ≥1390 ≥3630
OWM-5550246000 24 ≤270 6000 ≤800 5370 420 23.6 ≥1000 ≥5820
