| Place of Origin: | CHINA |
| Brand Name: | OWO |
| Certification: | CE, ROHS |
| Model Number: | OWM-12SSN30 |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | suite for export |
| Delivery Time: | as confirmed |
| Payment Terms: | T/T, Paypal, , Western Union |
| Supply Ability: | 100000pcs/month |
| Type: | Gear Motor | Torque: | 0.08~2kgf.cm |
|---|---|---|---|
| Speed(RPM): | 10-2600rpm | Commutation: | Brush |
| Output Pwer: | 0.08~1w | Efficiency: | IE4 |
| High Light: | OWM 12SSN30 Brushless,OWM 12SSN30 CE,OWM 12SSN30 CE ROHS |
||
Specifications:
Specifications below are for reference only. Contact us for more.
| Model Number | Rated Volt. | No Load | At Max Efficiency | Stall | |||||
| Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| rpm | mA | rpm | mA | Kgf.cm | W | mA | Kgf.cm | ||
| OWM-12SSN304.526300-20K | 4.5V | 1350 | 200 | 1028 | 550 | 0.08 | 0.84 | 1300 | 0.32 |
| OWM-12SSN304.526300-63K | 4.5V | 417 | 230 | 316 | 1100 | 0.3 | 0.97 | 2400 | 1.7 |
| Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in | |||||||||
Name Specification:
Technical Data of Gearbox:
| Reduction Stage | 2 | 3 | 4 | 5 | 7 |
| Reduction Ratio | 10K | 20K, 30K | 50K, 63K, 100K | 150K, 210K, 250K, 298K | 1000K |
| Length of Gearbox "L" mm | 9 | 12 | |||
| Gearbox Efficiency | 81% | 73% | 66% | 59% | 48% |
Technical Data of Motor:
| Motor model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | power | Torque | Current | ||
| V | mA | r/min | mA | r/min | gf.cm | W | gf.cm | mA | |
| OWM-N304.526300 | 4.5 | ≤130 | 26300 | ≤610 | 23200 | 5 | 1.2 | ≥25 | ≥2200 |
Drawing (mm):

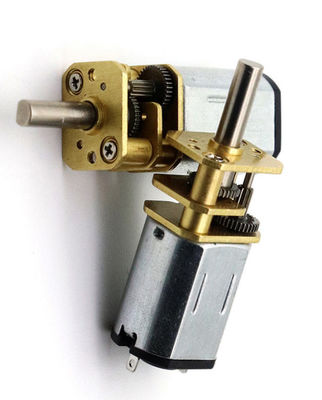

Tag:12mm dc straight-tooth speed reduction motor N30 dc speed reduction motor,intelligent door lock motor
