| Place of Origin: | CHINA |
| Brand Name: | No brand |
| Certification: | CE, ROHS |

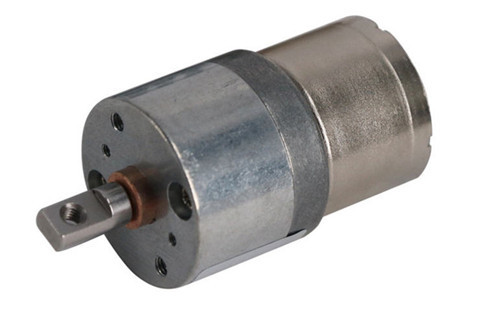

| Model Number: | OWM-27RS310 |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | suite for export |
| Delivery Time: | as confirmed |
| Payment Terms: | T/T, Paypal, , Western Union |
| Supply Ability: | 100000pcs/month |
| Type: | Gear Motor | Torque: | 0.2~3kgf.cm |
|---|---|---|---|
| Speed(RPM): | 3.7~484rpm | Output Pwer: | 0.5w |
| Voltage: | 6~24VDC | Efficiency: | IE4 |
| High Light: | OWM 27RS310 Fans,OWM 27RS310 Fan,Fan OWM 27RS310 |
||
Specifications:
Typical applications:
Auto shutter, binding machine, automatic TV rack, Money counter, Spot light, Tissue machine, Office equipments, Household Appliances, Automatic actuator.
| Model Number | Rated Volt. | No Load | At Max Efficiency | Stall | |||||
| Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| rpm | mA | rpm | mA | Kgf.cm | W | mA | Kgf.cm | ||
| OWM-27RS3100096200-100K | 9V | 62 | ≤80 | 47 | ≤230 | 0.66 | 0.32 | ≥480 | 2.1 |
| OWM-27RS3100128000-52K | 12V | 153 | ≤50 | 108 | ≤200 | 0.35 | 0.39 | ≥360 | 1.2 |
| OWM-27RS3100129200-210K | 12V | 43 | ≤110 | 30 | ≤320 | 1.5 | 0.46 | ≥490 | 4.7 |
| OWM-27RS3700126000-210K | 12V | 28 | ≤80 | 21 | ≤300 | 2.9 | 0.63 | ≥650 | 12 |
| OWM-27RS3100129200-771K | 12V | 12 | ≤45 | 10 | ≤184 | 3.2 | 0.33 | ≥490 | 16 |
| Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in | |||||||||
Above models are only standard products for reference, we can make as customers requirments.
Name Specification:
Technical Data of Gearbox:
| Reduction Stage | 4 | 5 | 6 | 7 | 8 |
| Reduction Ratio | 19K, 27K | 36K, 52K, 76K, 94K | 100K, 145K, 210K | 278K, 402K, 583K | 771K, 1119K, 1621K |
| Length of Gearbox "L" mm | 18 | 20 | 22 | 24 | 26 |
| Gearbox Efficiency | 65% | 59% | 53% | 48% | 43% |
Technical Data of Motor:
| Motor model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | power | Torque | Current | ||
| V | mA | rpm | mA | rpm | gf.cm | W | gf.cm | mA | |
| OWM-3100066000 | 6 | ≤33 | 6000 | ≤160 | 4800 | 10 | 0.5 | ≥45 | ≥550 |
| OWM-3100129200 | 12 | ≤33 | 9200 | ≤100 | 8400 | 5 | 0.44 | ≥51 | ≥510 |
| OWM-3100248000 | 24 | ≤20 | 8000 | ≤70 | 6400 | 10 | 0.67 | ≥45 | ≥190 |
Drawing (mm):
