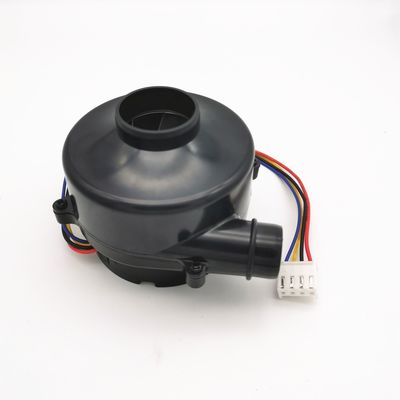

Breathing Machine 24VDC Brushless Air Blower With PG Signal Feedback

Breathing Machine 24VDC Brushless Air Blower With PG Signal Feedback
Breathing Machine 24VDC Brushless Air Blower With PG Signal Feedback Breathing Machine 24VDC Brushless Air Blower With PG Signal Feedback Breathing Machine 24VDC Brushless Air Blower With PG Signal Feedback Breathing Machine 24VDC Brushless Air Blower With PG Signal Feedback Breathing Machine 24VDC Brushless Air Blower With PG Signal Feedback Breathing Machine 24VDC Brushless Air Blower With PG Signal Feedback

Large Image :  Breathing Machine 24VDC Brushless Air Blower With PG Signal Feedback

Product Details:
Place of Origin: China
Brand Name: OWO
Certification: CE,Rosh
Model Number: OWB-4011
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: Negotiable
Packaging Details: Standard packing
Delivery Time: 5-25days
Payment Terms: T/T,L/C
Supply Ability: 300sets/days
Contact Now

Breathing Machine 24VDC Brushless Air Blower With PG Signal Feedback

Description
Rated Voltage: 24V DC Rated Current: 2.5A
Motor Speed: 18000 RPM Driving Motor: 3 Phase Brushless DC Motor
Bearing: NMB Ball Bearing Air Pressure: 240pa
Net Weight: 400g IP Grade: IP 54
Service Life: 6000 Hours
High Light:

24VDC Brushless Air Blower

,

Breathing Machine Brushless Air Blower

,

24V DC Brushless Blower

Brushless air Blower for breathing machine , 24v With PG Signal Feedback

Overview

Quick Details
Type:
Centrifugal Fan
Applicable Industries:
Hotels, Manufacturing Plant, Farms, Home Use, Energy & Mining
Electric Current Type:
DC
Blade Material:
Aluminium
Mounting:
FREE STANDING
Place of Origin:
Jiangsu, China
Brand Name:
OWB
Model Number:
OWB-0411
Voltage:
24V
Certification:
ce, RoHS
Warranty:
2 years
After-sales Service Provided:
Online support

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X8X4 cm
Single gross weight:
0.060 kg
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 15 To be negotiated

Product Description
Brushless DC Air Blower Features:
1: High speed, specialized high-speed ball bearing(NMB) offering long service life and lower noise
2: Die-casting aluminum motor base, high efficient heat dispersion
3: High efficiency, much more efficient than brushed motor blower
4: High reliability, specialized controller make the working more reliable
5: Built-in controller, PWM speed regulation, positive inversion, PG signal feedback, intelligent controlling
Breathing Machine 24VDC Brushless Air Blower With PG Signal Feedback 0
Model No.
OWB-0411
Rated Voltage
24VDC (9-28VDC)
Rated current(open)
2.5A
Air flow(open)
30CBM/H
Motor Speed(open)
17500 RPM
Rated current(closed)
1.1A
Air pressure(closed)
2800 Pa
Motor Speed(closed)
20500 RPM
Breathing Machine 24VDC Brushless Air Blower With PG Signal Feedback 1
Wind speed
25M/S
Noise
65dB A
Ball Bearing
NMB High-speed ball bearing
Driving motor
3 phase BLDC motor
Hall sensor
Sensorless
RPM-Pulse
1 pusle=30rpm
Blower weight
360g
Operation temperature
-20℃~ 50℃
IP grade
IP54
Brushless DC Air Blower Applications:
1: Buffer air cushion
2: Intelligent closestool
3: Electric-Drive phlegm-Sucker
4: Central ventilation system
5: Air purifier
6: Hand dryer
7: Air bubble machine
8: Ventilating device
9: Vacuum cleaner
10: breathing machine
11: air pump
12: Cooling equipment
Breathing Machine 24VDC Brushless Air Blower With PG Signal Feedback 2
Breathing Machine 24VDC Brushless Air Blower With PG Signal Feedback 3
Breathing Machine 24VDC Brushless Air Blower With PG Signal Feedback 4
Breathing Machine 24VDC Brushless Air Blower With PG Signal Feedback 5
Breathing Machine 24VDC Brushless Air Blower With PG Signal Feedback 6
Breathing Machine 24VDC Brushless Air Blower With PG Signal Feedback 7
Direction for use
NO need connect external controller for this blower

Red cable: DC24V+
Black cable:GND
Blue cable:PWM
Yellow cable:FG speed pulse signal output

PWM: 5V,9KHz,6%-100% dutycycle
Overall dimensions
Breathing Machine 24VDC Brushless Air Blower With PG Signal Feedback 8
