|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||PE bag+ carton|
|Delivery Time:||5-10 days|
|Working Voltage:||4.5 V-5.5 V.||Working Temperature:||-40-85 ℃|
|Drive Mode:||SPWM||Adaptive Motor:||Sensorless Motor / Sensored Motor|
|Shape:||Rectangle||Current Closed Loop:||Yes|
bldc fan driver ic,
closed loop Bldc Driver Ic,
fan bldc driver ic

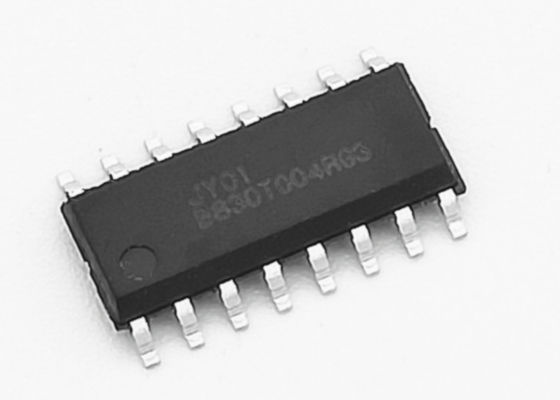

3 phase brushless dc motor control IC JY01
JY01 is special designed control IC for brushless DC motor driver, applied to Hall sensor BLDC motor or sensorless BLDC motor, its easy to application, peripheral circuit is simple, low costs, SPWM drive mode with low noise, high efficiency, stable quality and professional technical support,JY01 has been quickly approved by many electronic engineers.
JY01 has been widely used in many fields, such as:
brushless DC fan, brushless DC pump, lawn mower, scooter,balanced car, robot, scientific instruments and equipment,auto fuel pump, electric Windows, electric seat adjustment,air-conditioning fan, electric rearview mirror adjustment,such as home appliances such as vacuum cleaners, air conditioning, plumbing equipment, high-end children's toys, model aircraft, model cars, model, etc.; It has also been widely used in handheld tools such as grinding machines, hand drills, engraving machines, electric screwdrivers, etc
Working voltage: 4.5 v-5.5 V.
Working temperature: -40-85 ℃
Drive mode: SPWM
Daul drive mode : With Hall senor or sensorless
Adaptive motor: no hall motor/hall motor.
Steering control: positive/negative
Soft reversing: Yes
Speed signal: Yes
Overload protection: Yes
Current closed loop: Yes
Constant current drive: Yes
Blocking protection: Yes
Soft starting: yes
Special technology: JYKJ full condition safety start function
Speed adjustment: linear
Soft start period:1 S,3 S,10S optional
JY01 composed of medium-power Hall and sensorless brushl
controller board, 6 pcs TO-220 packed of high-power MOSFET m
back of the PCB, the VCC control board voltage in the range
Maximum operating current up to 20A (plus appropriate heatsin
circuits have been successfully used in such as DC brushle
brushless DC motor pump, scooter motor, handheld devices, etc
N+N framework applications can achieve the needs of high vol
current, so it is widely used in many DC brushless motor contro
higher working voltage or higher working current. This circuit ar
mature circuits. Circuit due to high stability, easy production an
the costs is low and can be facilitated for modular production
JY01 is integrated 2 in 1 control IC for Hall or sensorless brushless DC motor, which makes it very easy to
application in use, please pay attention before circuit design and application.
1: JY01 for Hall sensor motor driver, connect Pin 1 to Vss or connect 5V while power on, JY01 will drive as Hall way.
2: JY01 for Sensorless motor driver, offer 0.1V -4V to Pin 1, JY01 will drive as Sensorless way.
Pin 1 is multi-function pin, there are three operational states:
1: JY01 in application settings when power on.
2: This pin is a Enable control pin under Hall way,High-level voltage is normal drive,Low-level voltage is
forbidden-drive (no output)
3: This pin is Start torque adjustment pin under Sensorless way,voltage range:0.1V-2V.
Please confirm the application state of JY01 before the design.
a) Start torque setting:The Start torque setting is important for sensoless motor starting,the
Start torque is related with the motor performance. the motor will not start or hard to start if
the start torque is small,the motor will shake or reversing if the Start torque is too high.
Initial application debugging according to the motor load,follow the steps as follow:
i.Connect a 20K potentiometer to 0 V and 5 V ,the middle pin connect to JY01 IC I pin.
ii.Adjust the potentiometer to 0 V (Start torque 0) when power on.
iii.Input speed regulation signal to VR pin from 0V to 5V,and check the motor start or not
iv.If the motor can not start or start abnormal,can add the potentiometer value to 0.1 V then
repeat Step iii, if the motor still not start,then add to 0.2V/0.3V/0.4V of the potentiometer and
repeat Step iii till the motor start.
v.If the motor reversing when start,it means the Start torque is high,it should reduce the Start
torque for normal start, Otherwise long time reversing will damage the motor and MOSFET.
b) Overload protection and current sampling resistance setting:JY01 has perfect overload
protection function,it has overload protection and abnormal current protection function
when the current sampling resistor value R is correct set. When Is pin voltage meet to
0.1V,overload monitoring will start,and turn to Constant current state,the drive current will not
change, no matter the VR voltage getting higher or lower and the load getting bigger or
less.In this state,JY01 will keep offering constant drive power to motor. if the Is pin voltage
meet to 0.2V or more ,the protection will activated in 4.5 μs.
R value selection method
R value formula I = 0.1/R
I:value of constant current (unit:Amp)
0.1: JY01 Is pin voltage
R:current limit resistance(unit:Ohm)
For example:working current:3A,set the safety constant current to 5A , when the current
meet to 5A or more,the programme will keep the current at 5A.so according to formula
I=0.1/R, R=0.1/5=0.02 Ohm,so Overload protection and current sampling power resistor
should be 20 mOhm
c) Blocking protection:the blocking protection will activated and stop output if the motor not
start normal in 3 second, reduce the VR voltage to 0 to quit the protection, rise the VR voltage
to restart the motor.
DOWNLOAD JY01 IC USER MANUAL
