Fast Switching Reverse Body Recovery Dual N Channel BLDC Motor Driver IC

Fast Switching Reverse Body Recovery Dual N Channel BLDC Motor Driver IC

MOQ: 1 set
Price: Negotiable
Standard Packaging: PE bag+ carton
Delivery Period: 5-10 days
Payment Method: T/T,L/C,Paypal
Supply Capacity: 1000sets/day
Detail Information
Place of Origin
China
Brand Name
JUYI
Model Number
JY2605M
Drain-Source Voltage:
60V
Gate-Source Voltage:
±20V
Pulsed Drain Current:
185A
Maximum Power Dissipation:
65W
Application:
Motor Drive For 12V-24V Systems
Model Number:
JY2605M
Highlight:

N Channel BLDC Motor Driver ICchip

,

Fast Switching BLDC Motor Driver IC

,

JY2605M bldc driver ic

Product Description

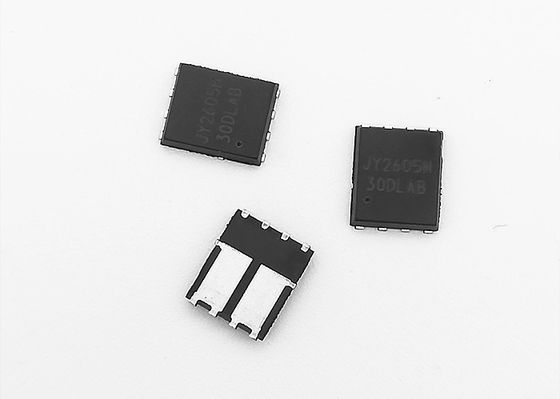

JY2605M Dual N Channel Enhancement Mode Power surface mount MOSFET for BLDC motor driver





GENERAL DESCRIPTION


The product utilizes the latest trench processing techniques to achieve the high cell
density and reduces the on-resistance with low gate charge. These features combine
to make this design an extremely efficient and reliable device for use in power
switching application and a wide variety of other applications.


FEATURES
● 60V/50A, RDS(ON) =14mΩ@VGS=10V(typical)
● Fast switching and reverse body recovery
● Fully characterized avalanche voltage and current
● Excellent package for good heat dissipation


APPLICATIONS
● Power Switching application
● Synchronous rectification
● Motor drive for 12V-24V Systems


Fast Switching Reverse Body Recovery Dual N Channel BLDC Motor Driver IC 0

Fast Switching Reverse Body Recovery Dual N Channel BLDC Motor Driver IC 1

Fast Switching Reverse Body Recovery Dual N Channel BLDC Motor Driver IC 2

DOWNLOAD JY2605M USER MANUAL

Fast Switching Reverse Body Recovery Dual N Channel BLDC Motor Driver IC 3JY2605M(1).pdf
