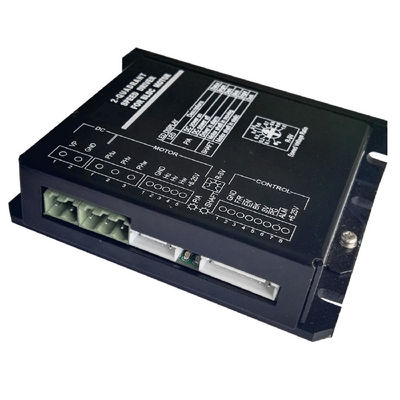

57mm current closed loop Three Phase Pwm 24v Dc Motor Controller

57mm current closed loop Three Phase Pwm 24v Dc Motor Controller

  • 57mm current closed loop Three Phase Pwm 24v Dc Motor Controller
  • 57mm current closed loop Three Phase Pwm 24v Dc Motor Controller
57mm current closed loop Three Phase Pwm 24v Dc Motor Controller
Product Details:
Place of Origin: China
Brand Name: OWO
Model Number: BLSD2410-2Q-SH
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton+packing foams
Delivery Time: 5-30days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per day
Contact Now
Detailed Product Description
Voltge: 12V,24V,36V,48V,110V,220V Current: 5A,10A,20A,30A,50A,100A
Closed Loop: Current Closed Loop Or Speed Closed Loop Motor Size: 22mm,35mm,42mm,57mm,86mm
Motor Speed: 100-100000RPM Customized Service: Yes
Technical Support: Yes
High Light:

pwm 24v dc motor controller

,

pwm based dc motor speed control

,

pwm dc motor controller

57mm BLDC motor,42mm BLDC motor,brushless DC motor,brushless DC motor driver,PWM ,12V.24V DC motor driver/controller

DK Series brushless DC motor

NEMA 09   NEMA 11   NEMA 13  NEMA 17  NEMA 23   NEMA 34  brushless dc motor



Model:

OD

(mm)

Phase resistance (Ω) Inductance (Mh) Rated voltage(V) Rated speed
(rpm)
Rated torque
(Nm)
DK22BL 22 11.8 4.2 24 3500 0.022 57mm current closed loop Three Phase Pwm 24v Dc Motor Controller 0
DK28BL 28 4.67 2.2 24 3100 0.05 57mm current closed loop Three Phase Pwm 24v Dc Motor Controller 1
DK33BL 33 14.2 7 24 4500 0.022 57mm current closed loop Three Phase Pwm 24v Dc Motor Controller 2
DK42BL 42 0.48 0.44 24 3000 0.36 57mm current closed loop Three Phase Pwm 24v Dc Motor Controller 3
DK42RBL 42 0.71 0.86 24 4000 0.15 57mm current closed loop Three Phase Pwm 24v Dc Motor Controller 4
DK45BL 45 0.61 0.47 24 4800 0.13 57mm current closed loop Three Phase Pwm 24v Dc Motor Controller 5
DK57RBL 57 0.35 1 36 4000 0.42 57mm current closed loop Three Phase Pwm 24v Dc Motor Controller 6
DK57RHBL 57 0.2 0.25 36 4000 0.8 57mm current closed loop Three Phase Pwm 24v Dc Motor Controller 6
DK57BL 57 0.5 0.6 36 3000 0.6 57mm current closed loop Three Phase Pwm 24v Dc Motor Controller 8
DK86BL 86 0.16 0.03 48 3000 2.1 57mm current closed loop Three Phase Pwm 24v Dc Motor Controller 8





BLSD Series pure hardware brushless DC motor speed driver / speed controller

 DC12V,DC24V,DC36V,DC48V,DC72V,DC155V,DC310V ,AC110,AC 220V brushless motor driver







BLSD 24 05 DC(AC,WDC) – 2Q – S (N,H,HV)



BLSD: brushless DC motor speed driver

24: operating voltage 24V

05: peak current limit  5A

DC: DC power input

AC:AC power input

WDC:wide range input voltage

2Q: 2-Quadrant driving mode

S:S series (small size and fixed parameter)

N:N series (normal size and variable parameters)

H:H series (high current and variable parameters)

HV: HV series (high voltage motor driver)





Model

Operatable Voltage

(V)

Peak  current  limit   (A) Description Sensor Photo
BLSD XXXX DC – 2Q – S DC:12V,24V,36V,48V 5A,10A,15A,20A compact size with fixed parameter Hall 57mm current closed loop Three Phase Pwm 24v Dc Motor Controller 10
BLSD XXXX DC – 2Q – N DC:12V,24V,36V,48V 10A,20A,30A



normal size and variable parameters



Hall 57mm current closed loop Three Phase Pwm 24v Dc Motor Controller 11
BLSD XXXX DC/WDC – 2Q – H

DC:24V,36V,48V

WDC:15V-55V

30A.50A,75A,100A



high current and variable parameters



Hall 57mm current closed loop Three Phase Pwm 24v Dc Motor Controller 12
BLSD XXXX DC/AC – 2Q – HV

AC:110V(45-140V),220V(45-275V)

DC:155V(60-195V),310V(60-385V)

4A,8A,16A,24A



high voltage motor driver



Hall 57mm current closed loop Three Phase Pwm 24v Dc Motor Controller 13







JYQD Series brushless DC motor speed driver / speed controller board

DC12V-36V, 15A,20A,500W,700W brushless motor driver board



Model

Operatable Voltage

(V)

Peak current limit (A) Description Sensor Photo
JYQD-V7.3E2 DC 12V-36V ≤15A opretable voltage:DC 12V-36V, output power :500W   Hall 57mm current closed loop Three Phase Pwm 24v Dc Motor Controller 14
JYQD-V7.3E1 DC 12V-36V ≤15A opretable voltage:DC 12V-36V, output power :500W  Hall 57mm current closed loop Three Phase Pwm 24v Dc Motor Controller 15
JYQD-V7.5E DC 12V-36V ≤20A



opretable voltage:DC 12V-36V, output power :700W



Hall 57mm current closed loop Three Phase Pwm 24v Dc Motor Controller 16
JYQD-V6.5

DC 12V-36V

≤20A





opretable voltage:DC 12V-36V, output power :700Wv

Sensorless 57mm current closed loop Three Phase Pwm 24v Dc Motor Controller 17
JYQD-V6.3E1

DC 12V-36V

≤15A

opretable voltage:DC 12V-36V, output power :500W



Sensorless 57mm current closed loop Three Phase Pwm 24v Dc Motor Controller 18
