110v Reversible Dc Motor Speed Control Pwm Controller

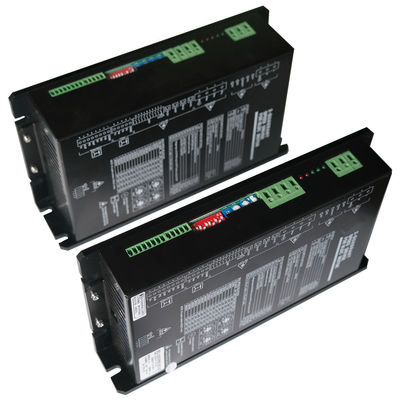

High voltage110VAC 2-Quadrant Brushless DC motor driver with speed closed-loop or current closed-loop

Description:

HV Serires is AC input speed driver with variable parameters and PI close-loop of speed and current. The reference can be selectable 10V analog voltage or 0∼100%PWM. Also it can be 0∼3kHz frequency. Parameters can be set by DIP switches and potentiometers such as pole number, max speed, ramp time, loop filter time and peak current etc.Protective founctions such as short circuit,safe start, safe direction reversal etc are presented. Votage grades are110,220VAC. Working current grades are 8,16,24A. Ambient temperarure grade are -10∼+45ºC,-40∼+65ºC.

Features:

♦Surface-mount technology small size,high current.

♦2-Quadrant PI close-loop control of speed with good linearity.

♦Variable parameters setting for different motors and easy use.

♦Control functions of safe reverse, safe start, enable,brake,speed referenceand output functions of speed pulse(PG),Short circult and over temperature protection,alarm. AC or DC supply can be used in wide range of voltage...

♦Three kinds of reference inputs:analog voltage,PWM,frequency.

♦The user can get motor accurate speed through output functions of speed pulse

♦Suitable for 3-phase BLDC motors with hall sensors.

♦Use of industrial grade chips,optical isolation port

Naming Rule:

     BLSD 110 01 AC – 2Q – HV  – T
BLSD:         BLDC speed driver

   110:         Rated AC Voltage (V)

     01:         Peak Current (A)

  ADC:         AC or DC Power Supply

    2Q:         2-Quadrant driving mode

    HV:         HV (high voltage)Series

      T:         T=-40~+65 ºC Ta, unlabelled=-10~+45 ºC Ta

HV Series 2Q BLDC Speed Driver With Fixed Parameters:
