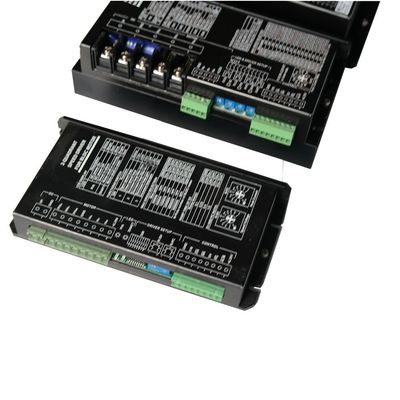

60 120 degree Hall Sensors 720W Bldc 3 Phase Motor Controller

60 120 degree Hall Sensors 720W Bldc 3 Phase Motor Controller

MOQ: 1PC
Price: Negotiable
Standard Packaging: carton box
Delivery Period: as confirmed
Payment Method: L/C, T/T, Western Union, Paypal
Supply Capacity: 3000pcs/month
Detail Information
Place of Origin
China
Brand Name
OWO
Certification
CE, RoHs
Model Number
BLSD4830DC-2Q-N
Voltage:
48VDC
Power:
720W
Size(L*W*H):
162*82.5*29
60/120º Hall Sensor:
Yes
PI Speed Close-loose Control:
Yes
Alarm Output:
Yes
Speed Pulse Output:
24p/r@ 8-Pole
Design:
Pure Hardware Built
Highlight:

bldc 3 phase motor controller

,

Hall bldc motor controllers

,

sensored 3 phase bldc motor control

Product Description

48V brushelss dc motor speed driver, BLDC motor controller for 3 phase bldc motor with hall sensors

Naming Rule:



BLSD 48 30 DC – 2Q – N - T P
BLSD: BLDC speed driver

48: Rated Voltage (VDC)

20: Peak Current Limit(A)

DC: DC power input

2Q: 2-Quadrant driving mode

N: N series (normal size and variable parameters)

T: T=-40~+65 ºC Ta, unlabelled=-10~+45 ºC Ta

P: P=0-3KHz pulse input at SV,unlabelled= 0-5V at SV



Description:



N Serires is speed driver with variable parameters and PI close-loop. The reference can be0∼5V analog voltage or 0∼100%PWM. Also it can be 0∼3kHz frequency by adding a F-V unit on PCB. Parameters can be set by DIP switches and potentiometers such as pole number, max speed, ramp time, loop filter time and peak current etc. Votage grades are 12,24,36,48VDC. Working current grades are 5,10,15A. Ambient temperarure grade are -10∼+45ºC,-40∼+65ºC



Features:

♦ Surface-mount technology and small size.

♦ 2-Quadrant PI close-loop control of speed with good linearity.

♦ Variable Parameter setting for different motors

♦ Control functions of F/R, enable, brake, speed reference and out put functions of speed pulse(PG), alarm. Over temperature protection.

♦ Three kinds of reference inputs: analog voltage, PWM, frequency.

♦ Suitable for 3 phase brushless DC motor with hall sensors

♦ Use of industrial grade chips.







N Series 2Q BLDC Speed Driver With Fixed Parameters:



NO. Model Ambient
Temp
(ºC)
Voltage
(VDC)
Peak
Current
Limit
(A)
Continuous
Current
(A)
60º/120º
Hall
Sensor
f
PWM
(kHz)
PI Speed
Close-loop
Control
SV
Ramp
Time
(S)
SV
Range
(V)
LV &
OV
Limit
Alarm
Output
Speed
Pulse
Output
1 BLSD1210DC-2Q-N**** -10~+45
-40~+65
12V
(9~15)
10 5 15

0.1/0.25/

0.5/1.0

0~5 24p/r@
8-Pole
2 BLSD1220DC-2Q-N**** -10~+45
-40~+65
12V
(9~15)
20 10 15

0.1/0.25/

0.5/1.0

0~5 24p/r@
8-Pole
3 BLSD1230DC-2Q-N**** -10~+45
-40~+65
12V
(9~15)
30 15 15

0.1/0.25/

0.5/1.0

0~5 24p/r@
8-Pole
4 BLSD2410DC-2Q-N**** -10~+45
-40~+65
24V
(17~32)
10 5 15

0.1/0.25/

0.5/1.0

0~5 24p/r@
8-Pole
5 BLSD2420DC-2Q-N**** -10~+45
-40~+65
24V
(17~32)
20 10 15

0.1/0.25/

0.5/1.0

0~5 24p/r@
8-Pole
6 BLSD2430DC-2Q-N**** -10~+45
-40~+65
24V
(17~32)
30 15 15

0.1/0.25/

0.5/1.0

0~5 24p/r@
8-Pole
7 BLSD3610DC-2Q-N**** -10~+45
-40~+65
36V
(27~45)
10 5 15

0.1/0.25/

0.5/1.0

0~5 24p/r@
8-Pole
8 BLSD3620DC-2Q-N**** -10~+45
-40~+65
36V
(27~45)
20 10 15

0.1/0.25/

0.5/1.0

0~5 24p/r@
8-Pole
9 BLSD3630DC-2Q-N**** -10~+45
-40~+65
36V
(27~45)
30 15 15

0.1/0.25/

0.5/1.0

0~5 24p/r@
8-Pole
10 BLSD4810DC-2Q-N**** -10~+45
-40~+65
48V
(37~55)
10 5 15

0.1/0.25/

0.5/1.0

0~5 24p/r@
8-Pole
11 BLSD4820DC-2Q-N**** -10~+45
-40~+65
48V
(37~55)
20 10 15

0.1/0.25/

0.5/1.0

0~5 24p/r@
8-Pole
12 BLSD4830DC-2Q-N**** -10~+45
-40~+65
48V
(37~55)
30 15 15

0.1/0.25/

0.5/1.0

0~5 24p/r@
8-Pole














Notice:

1. Select peak current of driver : If the rated current Ir of motor is presented, then Ip(A)≧2*Ir(A).
If the rated output power of motor Pr(W) is presented, then Ip(A)≧4*Pr/Vr. Vr(V) is the rated voltage of motor.
2. Driving quadrant: The drivers are only used in Ⅰ& Ⅲ quadrant.
3. Frequency input: The F-V transfer module can be added to the driver for frequency control (0-3KHz/ TTL) at SV port.
4. Brake operation: When BK port is switched to low level, motor will stop running quickly by shorting windings through bottom MOSFETs. The motor speed at braking must
not exceed Safe-Brake-Speed Ns (see the connection diagram).
5. Interference from leads:The Hall signals can be disturbed by switched current in windings leads when length is more than 500mm. Don’t intertwine them together. It is better to
use shielded leads.
6. Motor Insulation: Hall sensors to Windings/Hall sensors to Motor Case/Windings to Motor Case
Insulation Resistance > 500MOhm @ 500VDC
Dielectric strength < 1mA@500VAC/50-60Hz/1 minute
