Single Stage Brushless Dc Pump 24v

Single Stage Brushless Dc Pump 24v
Single Stage Brushless Dc Pump 24v Single Stage Brushless Dc Pump 24v Single Stage Brushless Dc Pump 24v

Large Image :  Single Stage Brushless Dc Pump 24v

Product Details:
Place of Origin: China
Brand Name: DECARBON
Model Number: DKB60TS
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: Negotiable
Packaging Details: carton+packing foams

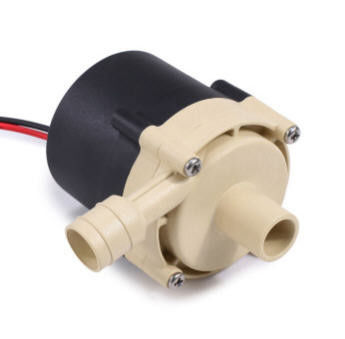

Single Stage Brushless Dc Pump 24v

Max Flow: 22L/M Max Head: 10M
Material: PK+GF Structure: Single-stage Pump
Power: Electric Motor: Brushless Motor
Rated Voltage: DC 24V
High Light:

Single Stage Brushless Dc Pump


10L M Brushless Dc Pump 24v


10L M 24v dc brushless water pump

PWM 24V DKB60TS centrifugal brushless DC water pump,brushless DC motor pump

DKB60TS Series Industrial grade brushless DC water pump

Boosting/circulation/Variable-frequency/Low-noise/centrifugal pump/PWM control


Single Stage Brushless Dc Pump 24v 0■ Applications

1:Solar water heater boosting
2:Water Purification Equipments
3:Drinking water machines
4:Automatic water dispenser
5:Water cooling equipment
6:Engine cooling
7:Heating equipment cooling
8:Cooling Towers
9:Irrigation Landscape

■ Features
◆Centrifugal pump
◆Magnetic force transmission (shield pump structure)
◆High efficiency brushless DC motor, low power consumption, high efficiency, long service life.
◆With wide range operating temperature
◆PWM signal speed controlling
◆With constant flow controlling
◆Reverse polarity protection (optional)
◆Dry running protection (optional)
◆Over Voltage, over current protection
◆Overload, over temperature protection


■ Technical description (parts in contact with the liquid)
Pump head housing: PK+GF
Impeller: PPE+GF
Shield cavity: PK+GF
Shaft sleeve: Carbon resin composite materials/ ceramic sleeve
Shaft: ceramics axis/stainless steel shaft
Seal ring: EPDM


■ Driving device (Including motor)
Driving electromagnet: Plastic magnetic molding
Screws and nuts: SUS 304 stainless steel
Driving Motor : brushless motor
Motor wire frame: PPA+GF (black)
Pump housing: PPS+GF(UV resistance)
Bracket: SUS 304 stainless steel
Bracket hoop: US 304 stainless steel+ Damping rubber ring
Waterproof based on IP65 rating (en60529)
Wiring:3 leads / Waterproof connector is optional
Nozzle diameter:20.5mm (inner diameter:14.5mm)


■ Model Specifications

DKB60TS-24A 24 V


■ Mounting instruction
DKB60TS series pumps are centrifugal pumps which require pre-filled,
The pump installed in the lowest position of the system to ensure that the impeller is always immersed in the liquid, or pre-filled the pump before power on .

1: Pump should not be dry-running, even though it can dry-running for 30 seconds (after 30 seconds dry-running, it will automatically stop), Dry running will makes noise, also increasing abrasion to the shaft and shaft sleeve.

2:Use the recommended diameter threaded pipe connecting the pump inlet, if you use a smaller diameter hose pump inlet, Due to the negative pressure in the pump, the outside air easier enter to the pump through the pipeline, it will make the pump performance degradation, and also the air bubbles make damage to the pump.

3: As viewed from the pump inlet direction, the impeller rotates clockwise (see the arrow on the outlet port).

4: The pump can be installed vertically or horizontally mounted (see figure 1 ) When installed vertically, the outlet port should be upward .

5:In order to avoid the dry- running (air get stuck in impeller),the water pump outlet port should be vertical or in the upper of the impeller. (see figure 1 )

6: The connected pipe should be vertically mounted (or no elbow in 20cm )to make the air discharged easily, the outlet pipe should not be used less than 90 degrees Elbow (see figure 2).

7: Can't use the seawater or other heavy pollution with big grain impurity liquid as the liquid medium .


Single Stage Brushless Dc Pump 24v 1Single Stage Brushless Dc Pump 24v 2

  figure 1                  figure 2                        figure 3


■ Temperature parameter
Medium liquid temperature: -25℃ to +105℃ (-13°F to + 221°F)
Working ambient temperature: -10℃ to +100℃ (14°F to +212°F)
Storage temperature: -40℃ to +70℃ (-40°F to +158°F)
(up to 100 ℃, but it will shorten the service life)

■ System pressure
-0.2 to 2.5 bar ( 100℃ (212°F).
The service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient temperature.

■ Voltage range
Rated 12V water pump, workable range 9V - 16V
Rated 24V water pump, workable range 16V - 30V
Although the motor can be used in a wide range of voltage and temperature, but excessive or too low voltage and temperature will affect the service life of the motor, the pump can not be exposed to thermal radiation ambient.

Medium liquid: pure water, liquid mixture (Water with below 60% glycol)


■ Electrical parameter
No. category specification
1 Rated voltage :24V
2 Workable voltage :18V-30V
3 Rated power 5-50W
3 Flow range 0-22L/minuts
4 Range of lift 0-10M
5 Noise ≤45dB
6 Service life 20000H
7 Operating mode continuous working
8 Diameter of inlet 18mm( inside diameter:14.5mm)
9 Diameter of outlet 18mm( inside diameter:14.5mm)


■ Description of Wiring
Standard length of the wire: 40 CM (DO NOT DRAG THE WIRE)

Single Stage Brushless Dc Pump 24v 3

■ Description of PWM

Three ways for speed regulation

1: 0-5V analog voltage
2:PWM duty cycle ratio 0%-100% (chart below)
3: Input PWM frequency (1K-10K Hz)

Single Stage Brushless Dc Pump 24v 4

All datas are customizable for customer



■Customization service:
1:The pump parts customizable according to customer specific requirements
2:Pumps’ performance parameters customizable according to customer's requirements
3:Optional accessories of the pump customizable according to customer's requirements
4:Special circuit program customizable according to customer requirements
5:The outer housing can be customizable according to customer's requirements

■Curve chart

Single Stage Brushless Dc Pump 24v 5

■ Water pump overall dimensions

Single Stage Brushless Dc Pump 24v 6
