12L M BLDC Water Pump

12L M BLDC Water Pump

  • 12L M BLDC Water Pump
  • 12L M BLDC Water Pump
12L M BLDC Water Pump
Product Details:
Place of Origin: China
Brand Name: DECARBON
Model Number: DKB45
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: carton + packing foams
Contact Now
Detailed Product Description
Max Flow: 12L/M Max Head: 8M
Rated Vvoltage: 24V Noise: 40dB
Service Life: More Than 10000 Hours Power: 30W
High Light:

12L M BLDC Water Pump

,

24 volt brushless water pump

,

10L M 24v dc brushless water pump

DC 24V DKB45 brushless DC water pump.mini centrifugal water pump for beauty Equipment



DKB45 Series Industrial brushless DC water pump

Boosting/circulation/Variable-frequency/Low-noise/PWM control



■ Applications

12V 24V brushless DC water pump,electric water pump,PWM pump,mini pump,coolant pump,automotive pump,centrifugal pump

1. Liquid transfer general purpose pumping
2. Coffee makers
3. Water dispensers
4. Vending machines
5. Juice machines
6. Laboratory
7. Medical treatment
8. Fountain, aquariums
9. Computer CPU cooling circulation
10. Water heating mattress

11:Cosmetic equipment

12:Beauty Equipment



■ Features

◆Centrifugal pump

◆Magnetic force transmission (shield pump structure)

◆High efficiency brushless DC motor, low power consumption, high efficiency, long service life.

◆With wide range operating temperature

◆PWM signal speed controlling

◆With constant flow controlling

◆Reverse polarity protection (optional)

◆Dry running protection (optional)

◆Over Voltage, over current protection

◆Overload, over temperature protection



Specification:
No. category specification
1 Rated voltage 24V
2 Workable voltage 18V-30V
3 Rated power 30W
3 Flow range 0-12L/minute
4 Range of lift 0-8M
5 Noise ≤40dB
6 Service life 10000H
7 Operating mode continuous working
8 Diameter of inlet 13.4mm
9 Diameter of outlet 10.2mm

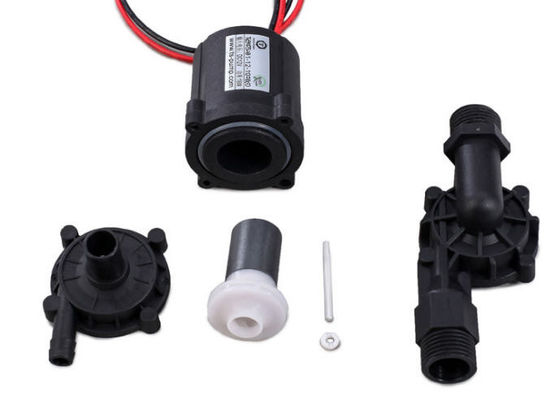

Pump structure

12L M BLDC Water Pump 1

Water pump overall dimensions

12L M BLDC Water Pump 2
