|Place of Origin:||China|
|Minimum Order Quantity:||5 sets|
|Packaging Details:||carton+packing foams|
|Supply Ability:||300sets per day|
|Max Flow:||7000L/H||Max Head:||5M|
|Power:||Electric||Motor:||DC Brushless Motor|
brushless dc water pump,
brushless pump 24v,
BLDC Water Pump 24v

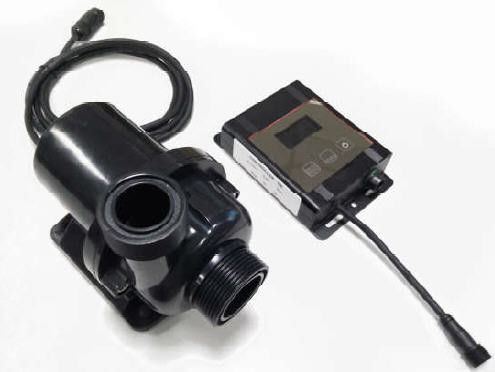

OWPD7-24 Brushless Aquarium circulation water pump for aquarium tank,Aquaculture pond,agricultural irrigation
OWPD7-24 brushless aquarium water pump
Boosting/circulation/Variable-frequency/Low-noise/centrifugal pump/PWM control
■ Functions and advantages
※ Self-acting dry running protection
※ Memory of running status
※ High efficiency
※ Low noise and smoothly running
※ External controller
※ 2 Watt per adjusting step
※ Submersible or dry install
※ Sea water using
※ LCD showing RPM, current, etc.
※ 0-10V signal control
※ Touching buttons
※ Ture FOC driver
|Model||Flow(L/H)||Speed(RPM)||Lift Head(M)||Rated Power(W)||Rated Current(A)||Input Voltage (ACV)||Motor Voltage(DCV)|
■ Mounting instruction
OWPD series pumps are centrifugal pumps which require pre-filled,
The pump installed in the lowest position of the system to ensure that the impeller is always immersed in the liquid, or pre-filled the pump before power on .
1: Pump should not be dry-running, even though it can dry-running for 60 seconds (after 60 seconds dry-running, it will automatically stop), Dry running will makes noise, also increasing abrasion to the shaft and shaft sleeve.
2:Use the recommended diameter threaded pipe(hosepipe ) connecting the pump inlet, if you use a smaller diameter hose pump inlet, Due to the negative pressure in the pump, the outside air easier enter to the pump through the pipeline, it will make the pump performance degradation, and also the air bubbles make damage to the pump.
3: As viewed from the pump inlet direction, the impeller rotates clockwise (see the arrow on the outlet port).
4: The pump can be installed vertically or horizontally mounted (see figure 1 ) When installed vertically, the outlet port should be upward .
5:In order to avoid the dry- running (air get stuck in impeller),the water pump outlet port should be vertical or in the upper of the impeller. (see figure 1 )
6: The connected pipe should be vertically mounted (or no elbow in 20cm )to make the air discharged easily, the outlet pipe should not be used less than 90 degrees Elbow (see figure 2).
7: Can't use the seawater or other heavy pollution with big grain impurity liquid as the liquid medium .
figure 1 figure 2 figure 3
■ Temperature parameter
Medium liquid temperature: -25℃ to +80℃
Working ambient temperature: -10℃ to +100℃
Storage temperature: -40℃ to +70℃ (-40°F to +158°F)
(up to 100 ℃, but it will shorten the service life)
■ System pressure
-0.2 to 2.5 bar ( 100℃ (212°F).
The service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient temperature.
■ Voltage range
Although the motor can be used in a wide range of voltage and temperature, but excessive or too low voltage and temperature will affect the service life of the motor, the pump can not be exposed to thermal radiation ambient.
Medium liquid: pure water, sea water(optional parts),liquid mixture (Water with below 60% glycol)
1:The pump parts customizable according to customer specific requirements
2:Pumps’ performance parameters customizable according to customer's requirements
3:Optional accessories of the pump customizable according to customer's requirements
4:Special circuit program customizable according to customer requirements
5:The outer housing can be customizable according to customer's requirements
■ Water pump structure
※ Pump is BLDC motor drived with sine wave controller.
※ Pump body is filled with epoxy resin, no water leak into stator, a temperature
controller inside to protect over heat.
※ Closed impeller is more effective, a water recycle through-hole inside rotor to reduce heat
※ Pump head is designed based on fluid mechanics to increase efficiency.
※ Titanium screw for sea water use.
※ Gel pump feet to decrease vibration.
※ Inlet and outlet mouth are British standard thread, OD of them are expanded to increase
■ Water pump performance
■ Water pump dimension
OWPD10, OWD12 . OWPD15
■ Water pump fittings
■ Water pump applications
