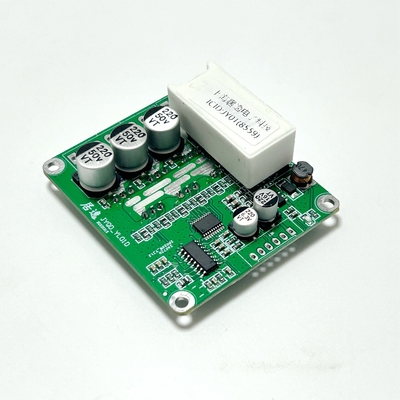

High Efficiency 24V DC BLDC Motor Driver For Electric Funabout

MOQ: 5pcs
Price: Negotiable
Standard Packaging: suite for export package
Delivery Period: as confirmed
Payment Method: L/C, T/T, Western Union
Supply Capacity: 10000PCS/Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Bextremeshell
Model Number
JYQD-YL01D
Working Voltage:
-20-85 Degrees Celsius
Hall Angle:
120 Degrees
Maximum Current:
15A
Analog Voltage:
0-2.5V/0-5V
Speed Signal Output:
Yes
Linear Brake:
Yes
Reversing Function:
Yes
Highlight:

High Efficiency bldc motor driver

,

Electric Funabout bldc motor driver

,

High Efficiency brushless dc motor driver

Product Description

High Efficiency 12V 24V 36V 48V DC BLDC Motor Driver for Electric Funabout E-bike Electric Amusement Vehicles



Model No. JYQD_YL01DXXXX



Application

RC electric vehicles, two-wheel balance bikes, RC wheelchairs, medical machines, amusement cars, robots, etc.



Port Definitions

1. Control port (right) 2.54 hole spacing

5V —The internal output of the control board is 5V.

EL —Brake control port, reactive linear braking, with energy recuperation function, analog voltage braking 0-5V. With constant speed+, the higher the braking voltage, the greater the braking force 0-100%.

M —Speed signal output port, pulse frequency is proportional to motor speed (pulse ratio is related to motor)

Z/F —Forward and reverse control ports. Hard commutation, turn in one direction with 5V or dangling, and turn in the other direction with GND.

VR —Speed control port, analog voltage speed regulation 0V-5V (0-2.5V) speed regulation, linear speed regulation from low to high. The external PWM speed regulation needs to be co-ground with the driver board.

GND—Internally GND of the controller

2. Power port (left): 3.96 hole spacing

P+ — Power input positive 12V-48V (support lithium battery)

P- — Power input negative

MC/W — One of the phase lines of the motor

MB/V — One of the phase lines of the motor

MA/U — One of the phase lines of the motor

GND — Motor Hall anode

HA — One of the motor hall signals

HB — One of the motor hall signals

HC — One of the motor hall signals

5V — Motor Hall positive

3. Note that the motor line should not be too long, as the wire is too long and there will be signal interference.

4. When working with continuous high current, attention should be paid to heat dissipation



Wiring Diagram

High Efficiency 24V DC BLDC Motor Driver For Electric Funabout 0

Selection Table

High Efficiency 24V DC BLDC Motor Driver For Electric Funabout 1

Schematic diagram of the product

High Efficiency 24V DC BLDC Motor Driver For Electric Funabout 2High Efficiency 24V DC BLDC Motor Driver For Electric Funabout 3

Dimensional drawings

High Efficiency 24V DC BLDC Motor Driver For Electric Funabout 4
