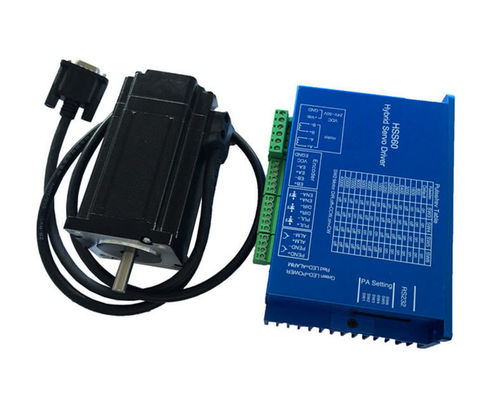

3NM Cnc Hybrid Servo Stepper Motor With Encoder HSS60 Stepper Driver

3NM Cnc Hybrid Servo Stepper Motor With Encoder HSS60 Stepper Driver

MOQ: 5pcs
Price: Negotiable
Standard Packaging: suite for export
Delivery Period: as confirmed
Payment Method: L/C, T/T, Western Union,PAYPAL
Supply Capacity: 10000PCS/Month
Detail Information
Place of Origin
china
Brand Name
OWO
Certification
CE, Rohs
Model Number
60HSE3N-D25
Phase:
2
Type:
Hybrid
Step Angle:
1.8 Degree
Holding Torque:
3.0N.M
Current/Phase:
5.0A
Inducatance:
1.8mH
Motor Length:
88mm
Resisitance:
0.45Ω
Encoder Resolution:
1000PPR
Weight:
1.55kg
Shape:
Square
Highlight:

Hybrid Servo Stepper Motor stepper encoder

,

hss60

,

hss60 2 phase stepper motor

Product Description

Nema 24 Closed loop stepper motor and driver



Product Description






Nema 24 closed loop stepper motor and driver:

Nema 24 closed loop stepper motor and driver with competitive price

Motor Parameter:


NEMA 24 hybrid easy servo motor and driver



Motor Parameter:

Motor Model Step angle Current Resistance Inductance Holding torque Motor length Total length Suitable driver Encoder resolution
60HSE3N-D25 1.8° 5.0A 0.45±10%Ω 1.8±20%mH 3.0N.m 88mm 109mm HSS60 1000ppr



Motor Dimension(mm):

3NM Cnc Hybrid Servo Stepper Motor With Encoder HSS60 Stepper Driver 1

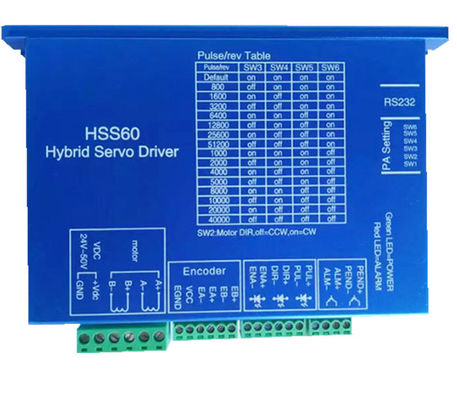

Driver HSS60
Features:
1. Position error correction and never lose steps
2. Quick response and perfect acceleration, High torque at high speed
3. Automatic current adjustment based on load, lower temperature rising
4. Over-current, over-voltage and position ultra difference protection function
5. Pulses response frequency can reach 200KHZ
6. 16 kinds microsteps choice, highest 51200microsteps/rev.
7. Drive nema 24 series 3N.m closed loop stepper motor
8. Voltage range: DC24V~50V

Microstep selection:

Micorstep/rev SW3 SW4 SW5 SW6
Default(400) on on on on
800 off on on on
1600 on off on on
3200 off off on on
6400 on on off on
12800 off on off on
25600 on off off on
51200 off off off on
1000 on on on off
2000 off on on off
4000 on off on off
5000 off off on off
8000 on on off off
10000 off on off off
20000 on off off off
40000 off off off off
Driver Dimension(mm):
Nema 24 closed loop stepper motor and driver with competitive price
Diagram:
Nema 24 closed loop stepper motor and driver with competitive price

Company Information

We have our factory and the traffic is convenient.

We have the advanced technology ,personnel and expertise in serving ,so we are able to produce according to the customers different needs .

We are look forward to receiving your enquires soon .



Factory show:



Nema 24 closed loop stepper motor and driver with competitive priceNema 24 closed loop stepper motor and driver with competitive price



Nema 24 closed loop stepper motor and driver with competitive price Nema 24 closed loop stepper motor and driver with competitive price





Packaging


Wooden case ,Carton or as your requirements.



Nema 24 closed loop stepper motor and driver with competitive price Nema 24 closed loop stepper motor and driver with competitive price
