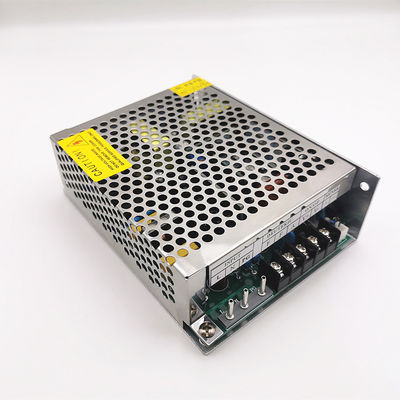

Large Image :  12v Dc Multiple Output Switching Power Supply For UV Spectra

Product Details:
Place of Origin: China
Brand Name: OWPS
Certification: CE,UL
Model Number: OWPS-02162.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-15days
Payment Terms: TT,LC,Paypal
Supply Ability: 300sets/day

12v Dc Multiple Output Switching Power Supply For UV Spectra

Description
Lamp Voltage: 2.5V Input Voltage: AC 85V-265V
Turn Off Signal: 3 ~ 12V / 1 MA Maximum Input Current: 0.8 A
High Light:

multiple output switching power supply

,

12v power supply multiple outputs

,

12v dc linear power supply

power supply for Deuterium lamp applied for UV spectra chromatography , atomic absorption,

DEUTERIUM LAMP POWER SUPPLY



OWPS-02162.5



12v Dc Multiple Output Switching Power Supply For UV Spectra 0

Part1....................................................................................................................Introduction

Part 2........................................................................................... Environmental Requirement

Part 3...................................................................................................... Technical parameters

Part 4............................................................................................................................ Wiring

Part 5............................................................................................................ Light up the lamp

Part 6................................................................................................... Installation and Cooling

Part 7.............................................................................................. Transportation and storage

Part 8.............................................................................................Maintenance and attention







Part 1:Introduction

OWPS series Deuterium lamp power supply was developed by OWO team in 2013,and its perfect replacement for expensive original models, the product has CE proved and 18 months warranty.

OWO now offer Deuterium lamp power supply that is commonly used in UV spectra chromatography , atomic absorption, UV-Visible spectrophotometer and other spectroscopic equipments.

Compared to the traditional linear power supplies this deuterium lamp switching power supply abolishes cumbersome transformers, it has set filament preheat, high voltage trigger and constant current control are just a number of features the deuterium power supply to ensure the stability of UV spectra. A small compact size, light weight and one of the biggest advantage is applicable to international mains input Voltage in the 85 -265V AC, no switching required! The power supply also has control port allowing external control signals (such as CPU or manual) which can easily turn on or off the deuterium lamp.

OWPS series deuterium power supply has professional anti-electromagnetic interference design, the electromagnetic interference reach to grade A.

OWPS series deuterium power supply has two models,OWPS-02162.5 apply to the lamp at filament voltage 2.5V, OWPS-021610 apply to the lamp at filament voltage 10V.please make sure you choose the right model for your usage.








Part 2: Environmental Requirement

1. operating environment:

Temp.: 0-40℃

RH: 40℃(20-90)% RH

Pressure: 86-106 KPa

2. storage environment:

Temp.: -40-70℃

RH: 50℃ 90% RH

Pressure: 86-106 KPa



Part 3: Technical parameters

OWPS-02162.5 OWPS-031510
Voltage input: AC 85 ~ 265V Voltage input: AC 85 ~ 265V
Maximum input current:0.5A Maximum input current:0.5A

Filament voltage:

Preheat:DC 2.5V

Working:0V

Filament voltage:

Preheat:DC 10V

Working:6-7V

Maximum anode voltage:

Preheat:DC 125V

Working:DC 80V

Maximum anode voltage:

Preheat:DC 125V

Working:DC 80V

Anode current:300mA Anode current:300mA

Constant flow accuracy: 0.05‰(after starting 1h)

Constant flow accuracy: 0.05‰(after starting 1h)

Minimum trigger voltage:DC 550V Minimum trigger voltage:DC 550V
Withstanding Voltage:AC 1500V / 1min Withstanding Voltage:AC 1500V / 1min
Turn off signal: 3 ~ 12V / 1 mA Turn off signal: 3 ~ 12V / 1 mA
Dimension:130 * 99 * 40 mm Dimension:130 * 99 * 40 mm
Net Weight:0.4kg Net Weight:0.4kg
