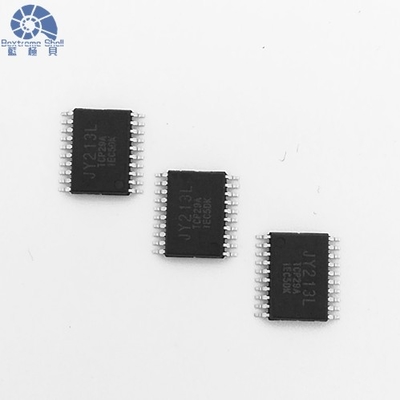

JY213L High Speed Gate Driver For Power MOSFET And IGBT Devices

JY213L High-Speed Gate Driver For Power MOSFET And IGBT Devices With Three Indepedent Output Channels

 Description

JY213L is a high-speed 3-phase gate driver tailored for power MOSFET and IGBT devices. This advanced driver features three independent output channels, both high and low side referenced, ensuring optimal control. With built-in dead time and shoot-through protection, it safeguards the half-bridge, preventing any potential damage. The UVLO circuits ensure reliable operation by preventing malfunction during low threshold voltage situations. Utilizing a groundbreaking high-voltage BCD process and common-mode noise canceling technique, this driver maintains stability in high dV/dt noise scenarios while exhibiting exceptional negative transient voltage tolerance. Additionally, an enable pin enables standby mode, allowing the chip to enter a low quiescent current state and enhancing battery longevity. Experience unparalleled performance and lasting reliability with the JY213L high-speed gate driver. Get more details please click here.

Features

• Integrated 90V half-bridge high side driver
• Ability to drive up to 3-phase half-bridge gates
• Built-in boot strap diode for each high side channel
• Built-in dead time protection
• Shoot-through protection
• Under voltage lockout for VCC and VBS
• Low operation voltage 0–5.5V for VCC and VBS
• 3.3V and 5V input logic compatible
• Enable pin (EN) for low standby current
• IO+/IO-: +1.2A/–2.0A at VCC=15V, VBS=15V
• Built-in dead time:0.5us (typ.)
• Common-mode dV/dt noise cancellation circuit
• Tolerant of negative transient voltage
• Low dI/dt gate drive for better noise immunity
• –40ºC to 125ºC operating range
• Small footprint package:TSSOP20L/24L,173mil

Application

• E-BIKE/electric power tool 3-phase motor driver
• Battery-powered mini/micro motor control
• General purpose inverter

Block Diagram

Typical appication circuit

Pin Configuration
