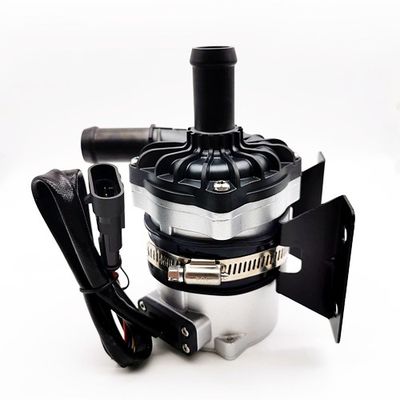

BEXTREME SHELL OWP SERIES 24VDC 100W FIXED AUTOMOTIVE WATER PUMP FOR EV BATTERY COOLING SYSTEM.

PRODUCT DESCRIPTION

The OWP-BL93-200 BLDC Water Pump is a high-performance and efficient water pump designed for various applications. With an input voltage range of 18-30V, this pump is capable of delivering reliable and consistent performance.

Its rated head of 9 meters and rated flow of 1800 L/H ensure efficient water delivery, making it suitable for a wide range of pumping tasks. The pump features a powerful 100W brushless DC motor, which offers high efficiency and low power consumption, resulting in energy savings and reduced operating costs.

One of the notable advantages of the OWP-BL93-200 is its dry running protection feature, which ensures the pump's longevity by automatically stopping operation when there is insufficient water supply. The shield pump structure with magnetic force transmission enhances its durability and reliability.

This water pump is designed to withstand a wide operating temperature range, making it suitable for various environments and conditions. It also incorporates several protection mechanisms such as reverse polarity, overvoltage, over current, overload, and over temperature protection, ensuring safe and reliable operation.

The OWP-BL93-200 BLDC Water Pump incorporates PWM signal speed control, allowing users to adjust the pumping speed according to their specific needs. This flexibility enables precise control and optimization of water flow.

FEATURES

◆ Centrifugal pump

◆ Magnetic force transmission (shield pump structure)

◆ High efficiency brushless DC motor, low power consumption, high efficiency, long service life.

◆ With wide range operating temperature

◆ With constant flow controlling

◆ Reverse polarity protection

◆ Dry running protection

◆ Over Voltage, over current protection

◆ Overload, over temperature protection

■ Driving device (Including motor)

Driving electromagnet: nylon plastic capsulated magnet Screws and nuts: SUS 304 stainless steel

Driving Motor : brushless motor Motor wire frame :PPA GF

Pump housing: Die-casting aluminum case with sandblasting and impregnation treatment

Bracket: Steel with powder coating

Bracket hoop: US 304 stainless steel+ Damping rubber ring Waterproof based on IP68 rating (en60529)
Connector model: AMP282106-1(matched Plug AMP282088-1)

Nozzle diameter: OWP-BL93-200:22.4mm (inner diameter:16mm)

                            OWP-BL93-250:25 mm

■ Technical description (related parts in contact with the liquid)

Pump head housing: PPS+GF

Impeller: PPS+GF

Shield cavity: PPS+GF

Shaft sleeve: Carbon resin composite materials

Shaft: stainless steel shaft

Magnet housing: nylon plastic capsulation

Seal ring: EPDM

PARAMETER

■ Electrical parameter of bldc water pump

■ Performance parameter

DIMENSIONAL DRAWING
