EWP 12V/24VDC Input 100W BLDC Water Pump For Hybrid Engine Systems.

EWP 12V/24VDC Input 100W BLDC Water Pump For Hybrid Engine Systems.

MOQ: 1pcs
Price: Negotiable
Standard Packaging: suite for export
Delivery Period: as confirmed
Payment Method: T/T, Paypal, , Western Union
Supply Capacity: 10000pcs/month
Detail Information
Place of Origin
CHINA
Brand Name
No brand
Model Number
OWP-BL93-300
Type:
Centrifugal Pump
Working Voltage:
9-16V/18-30V
Rated Power:
100W
Speed Regulation:
PWM
Rated Flow:
Q=1800L/H,H=9M
Fault Feedback:
Yes
Dry Running Protection:
Yes
Highlight:

12v brushed motor

,

brushed electric motor

,

24v brushed dc motor

Product Description

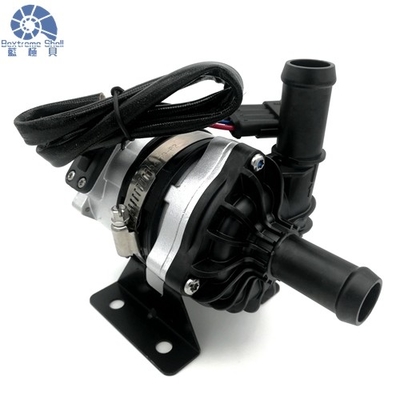

OWP Series EWP 12V/24VDC Input 100W BLDC Water Pump For Hybrid Engine Systems.

PRODUCTION DESCRIPTION

From Bextreme Shell Motor Tech. China OWP-BL93-300 BLDC Water Pump is a high-performance centrifugal pump designed for various applications. With a voltage input range of 9-16V/18-30V, it offers flexibility in power supply. This BLDC water pump has a rated head of 9M and rated flow of 1800 L/H, providing efficient water pumping. The EWP incorporates advanced features such as dry running protection, magnetic force transmission, and a centrifugal pump design. Its high-efficiency brushless DC (BLDC)motor ensures low power consumption and a long service life. The bldc water pump also comes with comprehensive protection features, including reverse polarity, overvoltage, overcurrent, overload, and over-temperature protection. Additionally, this EWP offers PWM signal speed control and can operate within a wide range of temperatures. OWP-BL93-300 is the ideal choice for those seeking a reliable, efficient, and durable bldc water pump solution.

EWP 12V/24VDC Input 100W BLDC Water Pump For Hybrid Engine Systems. 0

FEATURES

Centrifugal pump

Magnetic force transmission (shield pump structure)

◆High efficiency brushless DC motor, low power consumption, high efficiency, long service life.

◆With wide range operating temperature

◆PWM signal speed controlling

◆With constant flow controlling

◆Reverse polarity protection

◆Dry running protection

◆Over Voltage, over current protection



◆Overload, over temperature protection

■ Driving device (Including motor)
Driving electromagnet: nylon plastic capsulated magnet
Screws and nuts: SUS 304 stainless steel
Driving Motor : brushless motor
Motor wire frame :PPA GF
Pump housing: Die-casting aluminum case with sandblasting and impregnation treatment
Bracket: Steel with powder coating
Bracket hoop: US 304 stainless steel+ Damping rubber ring
Waterproof based on IP68 rating (en60529)
Connector model: AMP282106-1(matched Plug AMP282088-1)
Nozzle diameter:22.4mm (inner diameter:16mm)

■ Model Specifications
OWP-BL93-300-(12VDC)
OWP-BL93-301-(24VDC)

■ Technical description (related parts in contact with the liquid)
Pump head housing: PPS+GF
Impeller: PPS+GF
Shield cavity: PPS+GF
Shaft sleeve: Carbon resin composite materials
Shaft: stainless steel shaft
Magnet housing: nylon plastic capsulation
Seal ring: EPDM

PARAMETER
■ Performance parameter of EWP
EWP 12V/24VDC Input 100W BLDC Water Pump For Hybrid Engine Systems. 1
■ Electrical parameter of this automotive water pump
EWP 12V/24VDC Input 100W BLDC Water Pump For Hybrid Engine Systems. 2
EWP 12V/24VDC Input 100W BLDC Water Pump For Hybrid Engine Systems. 3
EWP 12V/24VDC Input 100W BLDC Water Pump For Hybrid Engine Systems. 4

DIMENSIONAL DRAWING
EWP 12V/24VDC Input 100W BLDC Water Pump For Hybrid Engine Systems. 5
EWP 12V/24VDC Input 100W BLDC Water Pump For Hybrid Engine Systems. 6
