| MOQ: | 5 sets |
| Price: | Negotiable |
| Standard Packaging: | standard packing |
| Delivery Period: | 5-15days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 500sets/day |

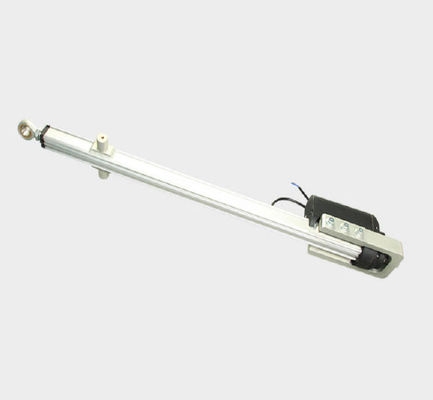

Linear Actuator motor 3.2mm/s 15000N,Electric Putter motor for solar panel tracking system
1.24V DC permanent magnet motor, firm structure, durable.
2.Speed 3.2 mm/s
3.Force 7500N (7000 cycles). 15 KN (800 cycles)
4.Tempreture Range:-30°- 70°,Duty cycle:12% with full load in normal tempreture
5.Potentiometer Feedback Optional.
6.Build in limit switch.
7.IP Grade:IP66
8.Certificate : CE
9.Overload clutch protection.
10.Widely used in various industry equipment.
special Vehicle and the high load output extremely harsh conditions.
| Code |
Stroke (mm) |
Min. Retracted length (mm) | Total length (mm) | Max load (Push/pull)N | Self-lock (Push/pull) | Speed(mm/S) |
Curren(A) 24V DC |
||||
| No load | Full load | No load | Full loac | ||||||||
| A | 500 | 142 | 847 | 15000 | 45000 | 3.3 | 2.7 | ≤2.4 | ≤12 | ||
| B | 750 | 232 | 1097 | ||||||||
| C | 1000 | 330 | 1347 | ||||||||
Dimensions
|
|
